6AV21240GC130AX0

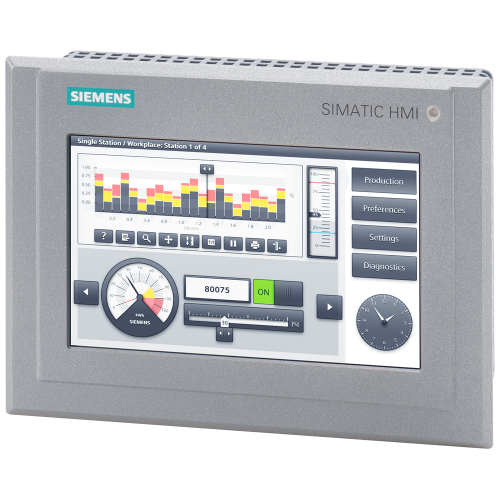

SIMATIC HMI TP700 Comfort Outdoor

Manufacturer's No: 6AV2124-0GC13-0AX0     Manufacturer: Siemens
SIMATIC HMI TP700 Comfort Outdoor

View 3D

Availability Back Order

£1,838.00
  • SIMATIC HMI TP700 Comfort Outdoor
  • 7" widescreen TFT display with 16 million colors
  • Touch operation
  • PROFINET interface
  • MPI/PROFIBUS DP interface
  • 12 MB configuration memory
  • Windows CE 6.0 (Microsoft support discontinued)
  • Configurable from WinCC Comfort V13 SP1, HSP

Accessories



Product

Manufacturer Material ID -
6AV2124-0GC13-0AX0
Net Weight -
1.82kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D992
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
67 Millimetre
Operation temperature -
-30 Degrees celsius
With printer output -
Number of interfaces PROFINET -
2
Recess depth -
67 Millimetre
Screen diagonal -
7 inch
Operating temperature -
-30 Degrees celsius
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Supporting protocol for PROFIBUS -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
With colour display -
Number of colours of the display -
16777216
Number of pixels, horizontal -
800
Number of pixels, vertical -
480
Number of function buttons, programmable -
0
With numeric keyboard -
With alpha numeric keyboard -
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
With message indication -
With message system (incl. buffer and confirmation) -
Process value representation (output) possible -
Process default value (input) possible -
With recipes -
Number of password levels -
50
Printer output available -
Number of online languages -
32
Additional software components, loadable -
Degree of protection (IP), front side -
IP66
Width of the front -
214 Millimetre
Height of the front -
158 Millimetre
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces Wireless -
0
Supporting protocol for EtherNet/IP -
Supporting protocol for PROFINET IO -
Supply voltage DC -
19.2 Volt
Type of display -
TFT
Number of grey-scales/blue-scales of display -
0
Number of buttons with LED -
0
Number of system buttons -
0
Touch technology -
Resistive touch

Availability Back Order

£1,838.00
