6AV21240GC010AX0

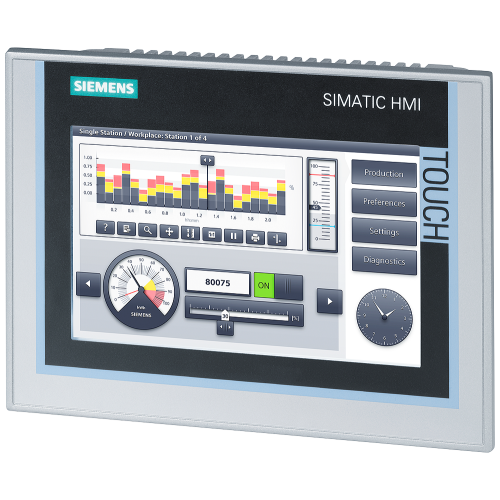

TP700 Comfort - 7" Colour Touch

Manufacturer's No: 6AV2124-0GC01-0AX0     Manufacturer: Siemens
TP700 Comfort - 7" Colour Touch

View 3D

Availability In Stock

£1,275.00
  • SIMATIC HMI TP700 Comfort
  • 7" widescreen TFT display with 16 million colors
  • Touch operation
  • PROFINET interface
  • MPI/PROFIBUS DP interface
  • 12 MB configuration memory
  • Windows CE 6.0 operating system
  • Configurable from WinCC Comfort V11

Accessories



Product

Manufacturer Material ID -
6AV2124-0GC01-0AX0
Net Weight -
1.53kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D002ENCU
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC

General data

Degree of protection (NEMA), front side -
UN
Operation temperature -
0 Degrees celsius
With printer output -
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Number of buttons with LED -
0
Number of colours of the display -
16777216
Number of function buttons, programmable -
0
Number of grey-scales/blue-scales of display -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
800
Number of pixels, vertical -
480
Number of system buttons -
0
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
63 Millimetre
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Type of display -
TFT
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Mechanical data

Built-in depth -
63 Millimetre
Height of the front -
158 Millimetre
Screen diagonal -
7 inch
Width of the front -
214 Millimetre

Interfaces

Number of interfaces PROFINET -
1
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0

Ambient conditions

Operating temperature -
0 Degrees celsius

Availability In Stock

£1,275.00
