• Key/touch operation
  • PROFIBUS interface
  • Configurable with WinCC Basic V13/ STEP 7 Basic V13
  • Contains open-source software (provided on CD)
  • " />


    6AV21232MA030AX0

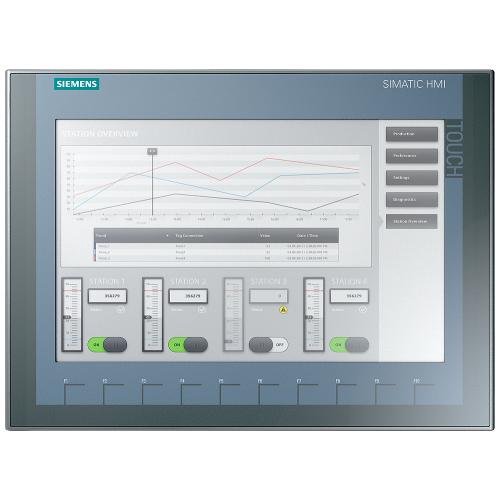

    KTP1200 Basic - 12" Colour Touch + 10 Function keys - Profibus

    Manufacturer's No: 6AV2123-2MA03-0AX0     Manufacturer: Siemens
    KTP1200 Basic - 12" Colour Touch + 10 Function keys - Profibus

    View 3D

    Availability Back Order

    £1,968.00
    • SIMATIC HMI KTP1200 Basic DP
    • 12" TFT display with 65536 colors
    • Key/touch operation
    • PROFIBUS interface
    • Configurable with WinCC Basic V13/ STEP 7 Basic V13
    • Contains open-source software (provided on CD)

    Accessories



    Product

    Manufacturer Material ID -
    6AV2123-2MA03-0AX0
    Net Weight -
    2.05kg

    Additional Product Information

    Commodity Code -
    85371099
    Country of Origin -
    CN
    Export Control Regulations -
    AL: N / ECCN: EAR99H
    Minimum Order Quantity -
    1
    RoHs Compliance -
    Yes
    UNSPSC -
    43201503

    Technical Specification

    -
    Siemens
    Supply voltage AC 50 Hz -
    - Volt
    Supply voltage AC 60 Hz -
    - Volt
    Touch technology -
    UN
    Degree of protection (NEMA), front side -
    UN
    Built-in depth -
    60 Millimetre
    Operation temperature -
    0 Degrees celsius
    Number of interfaces PROFINET -
    0
    STATFLAG -
    B
    Recess depth -
    60 Millimetre
    Screen diagonal -
    12 inch
    Operating temperature -
    0 Degrees celsius
    Voltage type of supply voltage -
    DC
    Number of HW-interfaces industrial Ethernet -
    0
    Number of HW-interfaces RS-232 -
    0
    Number of HW-interfaces RS-422 -
    1
    Number of HW-interfaces RS-485 -
    1
    Number of HW-interfaces serial TTY -
    0
    Number of HW-interfaces USB -
    1
    Number of HW-interfaces parallel -
    0
    Number of HW-interfaces other -
    0
    Supporting protocol for PROFIBUS -
    Supporting protocol for MODBUS -
    Supporting protocol for other bus systems -
    With colour display -
    Number of colours of the display -
    65536
    Number of pixels, horizontal -
    1280
    Number of pixels, vertical -
    800
    Number of function buttons, programmable -
    10
    With numeric keyboard -
    With alpha numeric keyboard -
    Useful project memory/user memory -
    10000 kiloByte (1000 Byte)
    With message indication -
    With message system (incl. buffer and confirmation) -
    Process value representation (output) possible -
    Process default value (input) possible -
    With recipes -
    Number of password levels -
    50
    Number of online languages -
    10
    Degree of protection (IP), front side -
    IP65
    Width of the front -
    330 Millimetre
    Height of the front -
    245 Millimetre
    Number of HW-interfaces PROFINET -
    0
    Number of HW-interfaces Wireless -
    0
    Supply voltage DC -
    19.2 Volt
    Type of display -
    TFT
    Number of grey-scales/blue-scales of display -
    0
    Number of buttons with LED -
    0
    Number of system buttons -
    0

    Availability Back Order

    £1,968.00
