• Operation: Key/touch
  • Interface: PROFIBUS
  • Software: Configurable with WinCC Basic V13/ STEP 7 Basic V13
  • Includes open-source software on CD
  • " />


    6AV21232GA030AX0

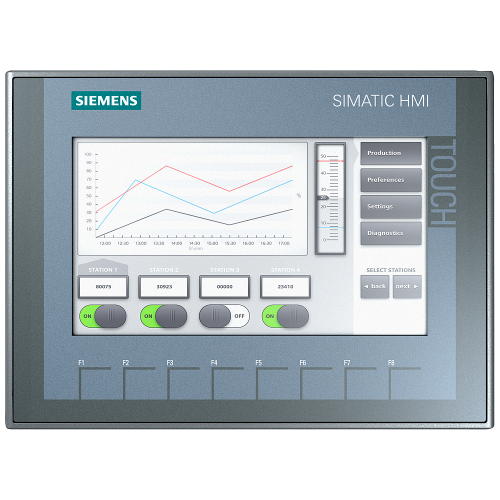

    KTP700 Basic - 7" Colour Touch + 8 Function keys - Profibus

    Manufacturer's No: 6AV2123-2GA03-0AX0     Manufacturer: Siemens
    KTP700 Basic - 7" Colour Touch + 8 Function keys - Profibus

    View 3D

    Availability In Stock

    £787.00
    • Model: SIMATIC HMI KTP700 Basic DP
    • Display: 7" TFT with 65536 colors
    • Operation: Key/touch
    • Interface: PROFIBUS
    • Software: Configurable with WinCC Basic V13/ STEP 7 Basic V13
    • Includes open-source software on CD

    Accessories



    Product

    Manufacturer Material ID -
    6AV2123-2GA03-0AX0
    Net Weight -
    0.99kg

    Additional Product Information

    Commodity Code -
    85371099
    Country of Origin -
    CN
    Export Control Regulations -
    AL: N / ECCN: EAR99H
    Minimum Order Quantity -
    1
    RoHs Compliance -
    Yes
    UNSPSC -
    43201503

    Technical Specification

    -
    Siemens
    Supply voltage AC 50 Hz -
    - Volt
    Supply voltage AC 60 Hz -
    - Volt
    Touch technology -
    UN
    Degree of protection (NEMA), front side -
    UN
    Built-in depth -
    39 Millimetre
    Operation temperature -
    0 Degrees celsius
    Number of interfaces PROFINET -
    0
    Recess depth -
    39 Millimetre
    Screen diagonal -
    7 inch
    Operating temperature -
    0 Degrees celsius
    Voltage type of supply voltage -
    DC
    Number of HW-interfaces industrial Ethernet -
    0
    Number of HW-interfaces RS-232 -
    0
    Number of HW-interfaces RS-422 -
    1
    Number of HW-interfaces RS-485 -
    1
    Number of HW-interfaces serial TTY -
    0
    Number of HW-interfaces USB -
    1
    Number of HW-interfaces parallel -
    0
    Number of HW-interfaces other -
    0
    Supporting protocol for PROFIBUS -
    Supporting protocol for MODBUS -
    Supporting protocol for other bus systems -
    With colour display -
    Number of colours of the display -
    65536
    Number of pixels, horizontal -
    800
    Number of pixels, vertical -
    480
    Number of function buttons, programmable -
    8
    With numeric keyboard -
    With alpha numeric keyboard -
    Useful project memory/user memory -
    10000 kiloByte (1000 Byte)
    With message indication -
    With message system (incl. buffer and confirmation) -
    Process value representation (output) possible -
    Process default value (input) possible -
    With recipes -
    Number of password levels -
    50
    Number of online languages -
    10
    Degree of protection (IP), front side -
    IP65
    Width of the front -
    214 Millimetre
    Height of the front -
    158 Millimetre
    Number of HW-interfaces PROFINET -
    0
    Number of HW-interfaces Wireless -
    0
    Supply voltage DC -
    19.2 Volt
    Type of display -
    TFT
    Number of grey-scales/blue-scales of display -
    0
    Number of buttons with LED -
    0
    Number of system buttons -
    0

    Availability In Stock

    £787.00
