1SBL283061R5110

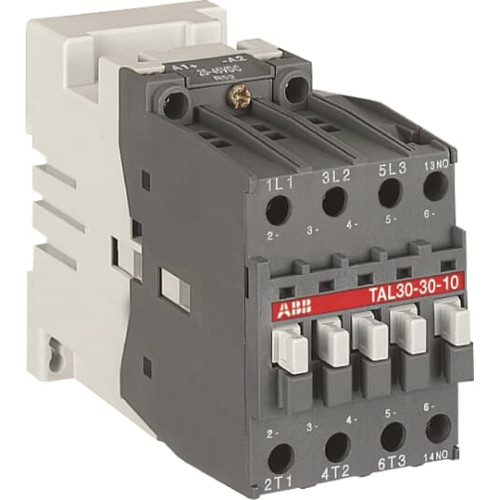

TAL30-30-10 17-32V DC Contactor

Manufacturer's No: TAL30-30-10     Manufacturer: ABB
TAL30-30-10 17-32V DC Contactor

Availability Back Order

£264.76
  • Model: TAL30-30-10 17-32V DC Contactor
  • Used for controlling 3-phase motors and power circuits up to 690V AC or 220V DC
  • Applications: isolation, capacitor switching, lighting
  • Design: 1-stack 3-pole block type
  • Main poles: 3, Auxiliary contact blocks: 1 built-in, front and side-mounted add-on
  • Control circuit: DC operated with solid core magnet circuit
  • Coil: Low consumption DC coil with a large voltage range
  • Accessories: Wide range available


Product

Manufacturer Material ID -
TAL30-30-10
Net Weight -
0.85kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39121529

Mechanical data

Depth -
125.3 Millimetre
Height -
90 Millimetre
Width -
54 Millimetre

General data

Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Type of electrical connection of main circuit -
Screw connection

Electrical data

Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at DC -
17 Volt
Rated operation current Ie at AC-1, 400 V -
55 Ampere
Rated operation current Ie at AC-3, 400 V -
32 Ampere
Rated operation power at AC-3, 400 V -
15 Kilowatt
Voltage type for actuating -
DC
ABB

Availability Back Order

£264.76
