2CDS212001R0104

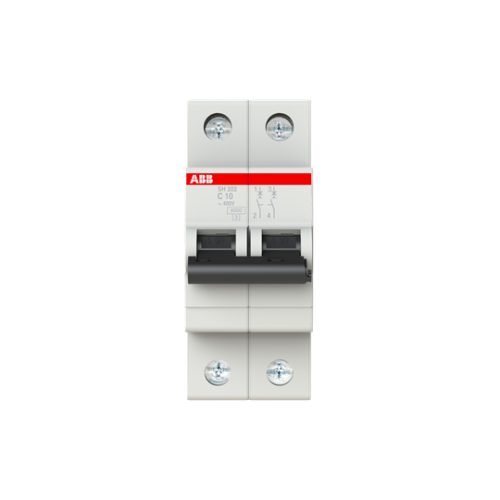

SH202-C10 Miniature Circuit Breaker - 2P - C - 10 A

Manufacturer's No: SH202C10     Manufacturer: ABB
SH202-C10 Miniature Circuit Breaker - 2P - C - 10 A

Availability Back Order

£43.90
  • SH202-C10 Miniature Circuit Breaker
  • 2P (2 poles)
  • 10 A rated current
  • Current limiting with delayed thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Available in B and C characteristics
  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P
  • Breaking capacities up to 6 kA at 230/400 V AC
  • Complies with IEC/EN 60898-1 for residential applications


Product

Manufacturer Material ID -
SH202C10
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
6 kiloampere
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
2
Power loss -
4.2 Watt
Rated current -
10 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
2
ABB

Availability Back Order

£43.90
