2CDS251001R0805

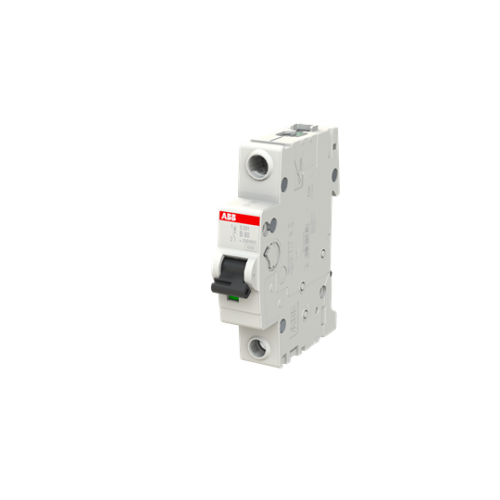

Miniature Circuit Breaker - S200 80-100A - 1P - 80 A - B

Manufacturer's No: S201B80     Manufacturer: ABB
Miniature Circuit Breaker - S200 80-100A - 1P - 80 A - B

Availability Back Order

£57.84
  • Type: Miniature Circuit Breaker
  • Model: S201-B80
  • Configuration: 1P (Single Pole)
  • Current Rating: 80 A
  • Breaking Capacity: 6 kA
  • Trip Characteristic: B


Product

Manufacturer Material ID -
S201B80
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Mechanical data

Built-in depth -
69 Millimetre

General data

Release characteristic -
B
Degree of protection (IP) -
IP20
Additional equipment possible -
Connectable conductor cross section multi-wired -
4 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Pollution degree -
3
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
10 kiloampere
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
B
Width in number of modular spacings -
1

Ambient conditions

Ambient temperature during operating -
-25 Degrees celsius

Electrical data

Current limiting class -
3
Over voltage category -
3
Rated current -
80 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated voltage -
230 Volt
Voltage type -
Other
