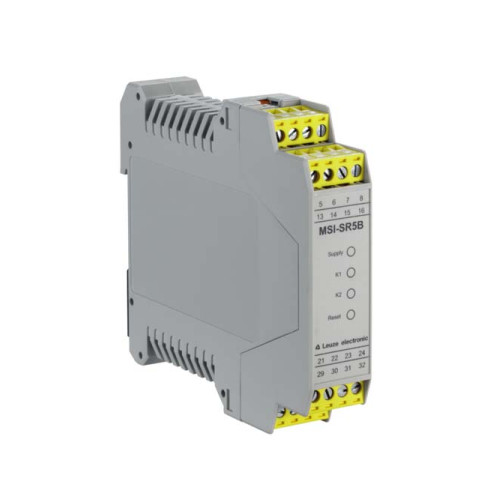

Safety relay SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; STOP category: 0, IEC/EN 60204-1; Contacts (NO contact/NC contact): 2 NO contacts / -; Number of

547952

Safety relay SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; STOP category: 0, IEC/EN 60204-1; Contacts (NO contact/NC contact): 2 NO contacts / -; Number of

Produced by Leuze

Availability Back Order

Price - £224.00
Safety relay SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; STOP category: 0, IEC/EN 60204-1; Contacts (NO contact/NC contact): 2 NO contacts / -; Number of safety-related switching outputs (OSSDs): 2 Piece(s); Safety-related switching output 1: Relay, NO; Safety-related switching output 2: Relay, NO; Connectible safety sensors (AOPDs): Up to 2 AOPDs type 4, type 3 or type 2 self-testing; Connectible electro-mechanical safety devices: Safety switches, E-Stop command devices, 1 and 2-channel; Connection: Screw terminal; Dimension: 22.5 mm x 99 mm x 114.1 mm; Ambient temperature, operation: 0 ... 55 °C; Certifications: c TÜV NRTL US, TÜV Süd, c UL US; Functions: Double sensor monitoring, Cross circuit monitoring, Start/restart interlock (RES), selectable, Automatic start/restart, Contactor monitoring (EDM); Restart: Automatic, Manual

Data Sheets

No accessories available for this product.
No alternatives available for this product.
Product
Manufacturer Material ID -
MSI-SR5B-01
Net Weight -
0.23kg
Additional Product Information
Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121521
Technical Specification
Category according to EN 954-1 -
4
Width -
22.5 Millimetre
Height -
99 Millimetre
Depth -
114.1 Millimetre
Number of outputs, safety related, undelayed, semiconductors -
2
SIL according to IEC 61508 -
3

Additional Information
