The Safety relay from .  Application: Base device for E-Stop and safety door applications; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; Contacts (NO conta

50133004

The Safety relay from . Application: Base device for E-Stop and safety door applications; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; Contacts (NO conta

Produced by Leuze

Availability Back Order

Price - £140.00
The Safety relay from . Application: Base device for E-Stop and safety door applications; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; Contacts (NO contact/NC contact): 3 NO contacts / 1 NC contact; Connection: Screw terminal; Dimension: 22.5 mm x 96.5 mm x 114 mm; Certifications: TÜV Rheinland, c UL US; Functions: Monitoring of solenoid switches, Monitoring of proximity switches, Monitoring of E-Stop circuits, Monitoring of optoelectronic protective devices, Monitoring of position switches; Restart: Automatic

Data Sheets

No accessories available for this product.
No alternatives available for this product.
Product
Manufacturer Material ID -

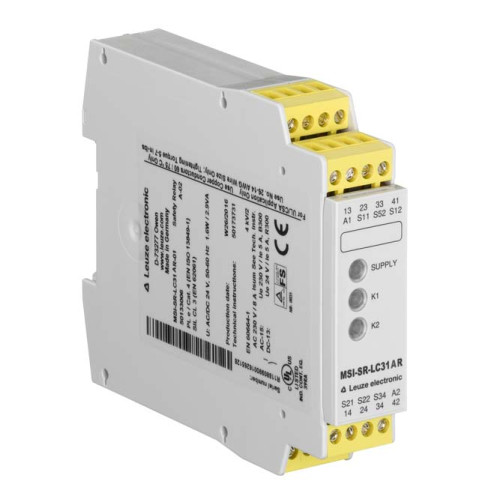

MSI-SR-LC31AR-01
Net Weight -
0.22kg
Additional Product Information
Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121528
Technical Specification
Rated control supply voltage Us at AC 50HZ -
204 Volt
Rated control supply voltage Us at AC 60HZ -
204 Volt
Rated control supply voltage Us at DC -
204 Volt
Category according to EN 954-1 -
4
Width -
22.5 Millimetre
Height -
96.5 Millimetre
Depth -
114 Millimetre
Number of outputs, safety related, undelayed, with contact -
3
Number of outputs, signalling function, undelayed, with contact -
1
Rated control supply voltage at AC 50 Hz -
20.4 Volt
Rated control supply voltage at AC 60 Hz -
20.4 Volt
Rated control supply voltage at DC -
20.4 Volt
Evaluation inputs -
2-channel
SIL according to IEC 61508 -
3

Additional Information
