50133022

The Safety relay from . Application: Base device for E-Stop applications; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13

Manufacturer's No: MSI-SR-ES31-01     Manufacturer: Leuze
The Safety relay from .  Application: Base device for E-Stop applications; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; Contacts (NO contact/NC contact):

Availability Back Order

£135.00
  • Application: E-Stop circuits, Position switches
  • Functions: Start/restart interlock (RES), Contactor monitoring (EDM)
  • Restart: Automatic, Manual
  • SIL: 2, IEC 61508
  • Performance Level (PL): d, EN ISO 13849-1
  • Category: 3, EN ISO 13849-1
  • Contacts: 3 NO contacts / 1 NC contact
  • Connection: Screw terminal
  • Dimension: 22.5 mm x 96.5 mm x 114 mm
  • Ambient temperature, operation: -25 to 55 °C

Read more

  • Certifications: c UL US, TÜV Rheinland


Product

Manufacturer Material ID -
MSI-SR-ES31-01
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Release-delay -
- Second
Number of outputs, safety related, undelayed, semiconductors -
-
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
With approval for T‹V -
Stop category acc. IEC 60204 -
UN
Voltage type for actuating -
UN
Rated control supply voltage Us at AC 50HZ -
26.4 Volt
Rated control supply voltage Us at AC 60HZ -
20.4 Volt
Rated control supply voltage Us at DC -
20.4 Volt
Category according to EN 954-1 -
3
Performance level acc. EN ISO 13849-1 -
Level d
Suitable for monitoring of position switches -
With approval for TÜV -
Depth -
114 Millimetre
Evaluation inputs -
Other
Height -
96.5 Millimetre
Model -
Basic device
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, with contact -
3
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
1
Operating voltage at AC 50 Hz -
24 Volt
Operating voltage at AC 60 Hz -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level d
Power consumption -
1.3 Watt
Rail mounting possible -
Rated switch current -
8 Ampere
SIL according to IEC 61508 -
2
Stop category acc. to IEC 60204 -
Other
Suitable for monitoring of optoelectronic protection equipment -
Supply voltage AC 50 Hz -
24 Volt
Supply voltage AC 60 Hz -
24 Volt
Type of control voltage 1 -
AC
Type of electric connection -
Clip connection
Type of safety acc. IEC 61496-1 -
None
Voltage type (operating voltage) -
AC/DC
Voltage type of supply voltage -
AC/DC
Width -
22.5 Millimetre
With feedback circuit -
With start input -

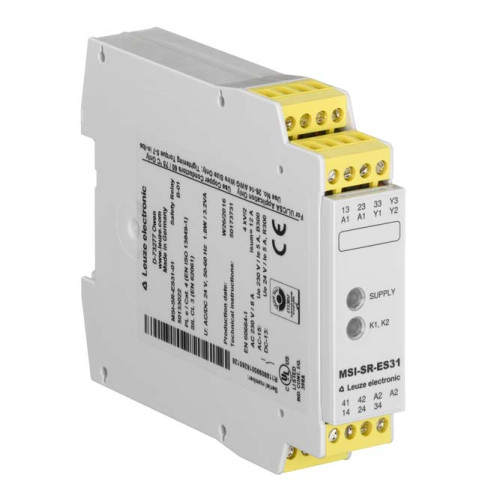

Thumbnail of product picture -
Leuze

Availability Back Order

£135.00
