50132997

The Non-safe I/O module from . Functions: Non-safe extension module for the MSI 400 configurable safety control, Extension with 4

Manufacturer's No: MSI-EM-IO84NP-01     Manufacturer: Leuze
The Non-safe I/O module from .  Functions: Non-safe extension module for the MSI 400 configurable safety control, Extension with 4 non-safe inputs, 4 non-safe outputs and 4 non-safe freely programma

Availability Back Order

£224.00
  • Functions: Non-safe extension module for MSI 400 configurable safety control
  • Number of inputs: 4 pieces
  • Number of outputs: 4 pieces
  • 4 non-safe inputs, 4 non-safe outputs, and 4 non-safe freely programmable I/Os (OSSDs)
  • Connection: Screw terminal
  • Dimensions: 22.5 mm x 96.5 mm x 120.8 mm
  • Certifications: c UL US


Product

Manufacturer Material ID -
MSI-EM-IO84NP-01
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
32151804

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Time delay at signal exchange -
- Millisecond
Voltage type of supply voltage -
UN
Type of voltage (input voltage) -
UN
Output current -
- Ampere
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Depth -
120.8 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
96.5 Millimetre
Input current at signal 1 -
3 Milliampere
Permitted voltage at output -
16.2 Volt
Power consumption -
0.5 Watt
Short-circuit protection, outputs available -
Supply voltage DC -
24 Volt
Type of digital output -
Transistor
Type of electric connection -
Screw-/spring clamp connection
Width -
22.5 Millimetre

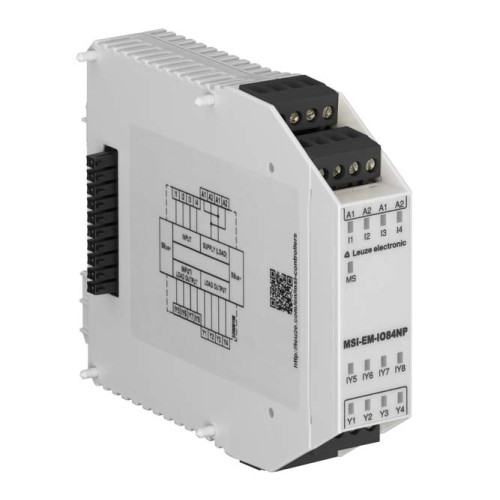

Thumbnail of product picture -
Leuze

Availability Back Order

£224.00
