50132990

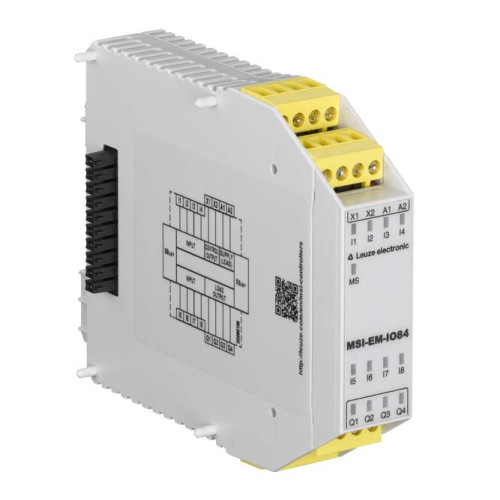

The Safe I/O module from . Functions: Extension module for the MSI 400 configurable safety control, Extension with 8 safe inputs

Manufacturer's No: MSI-EM-IO84-01     Manufacturer: Leuze
The Safe I/O module from .  Functions: Extension module for the MSI 400 configurable safety control, Extension with 8 safe inputs and 4 safe outputs (OSSDs); Performance Level (PL): e, EN ISO 13849-

Availability Back Order

£335.00
  • Extension module for MSI 400 configurable safety control
  • 8 safe inputs and 4 safe outputs (OSSDs)
  • SIL: 3, IEC 61508
  • Performance Level (PL): e, EN ISO 13849-1
  • Category: 4, EN ISO 13849
  • Number of outputs: 4 pieces
  • Number of inputs: 8 pieces
  • Connection: Screw terminal
  • Dimensions: 22.5 mm x 96.5 mm x 120.8 mm
  • Certifications: c UL US, TÜV Rheinland


Product

Manufacturer Material ID -
MSI-EM-IO84-01
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Time delay at signal exchange -
- Millisecond
Voltage type of supply voltage -
UN
Type of voltage (input voltage) -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
Type of output voltage -
UN
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Suitable for safety functions -
Depth -
120.8 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
96.5 Millimetre
Input current at signal 1 -
8 Milliampere
Output current -
4 Ampere
Performance level acc. to EN ISO 13849-1 -
Level e
Permitted voltage at output -
16.8 Volt
Power consumption -
1.1 Watt
Short-circuit protection, outputs available -
SIL according to IEC 61508 -
3
Supply voltage DC -
24 Volt
Type of digital output -
Transistor
Type of electric connection -
Screw-/spring clamp connection
Width -
22.5 Millimetre
Thumbnail of product picture -
Leuze

Availability Back Order

£335.00
