426535

The Safety sensor/transceiver set from . Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Oper

Manufacturer's No: MLD530-RT2M-UDC-1000-S2     Manufacturer: Leuze
The Safety sensor/transceiver set from . Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Operating range: 0,5 ... 8 m; Number of beams: 2 Piece(s); Beam spacing:

Availability Back Order

£1,633.00
  • Special version: Integrated muting indicator
  • Type: 4, IEC/EN 61496
  • SIL: 3, IEC 61508
  • Performance Level (PL): e, EN ISO 13849-1
  • Operating range: 0.5 to 8 meters
  • Number of beams: 2 pieces
  • Beam spacing: 500 mm
  • Column height without foot: 1,000 mm

Accessories

Component part

Others



Product

Manufacturer Material ID -
MLD530-RT2M-UDC-1000-S2
Net Weight -
6.90kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Width -
- Millimetre
Height -
- Millimetre
Length -
- Millimetre
Ambient temperature -
- Degrees celsius
Number of semiconductor outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Type of interface for safety communication -
UN
Type of switching output of the OSSD -
UN
Operation agent-safety class -
UN
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Switching voltage of OSSD at state "high" -
- Volt
Wavelength of the sensor -
- Nanometre
Detection power for test bodies -
500 Millimetre
Beam spacing -
500 Millimetre
Detection capability for test bodies -
500 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Model -
Transmitter and receiver in one housing
Number of beams -
2
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
8 Metre
Type of electric connection -
Connector M12
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
With beam coding -

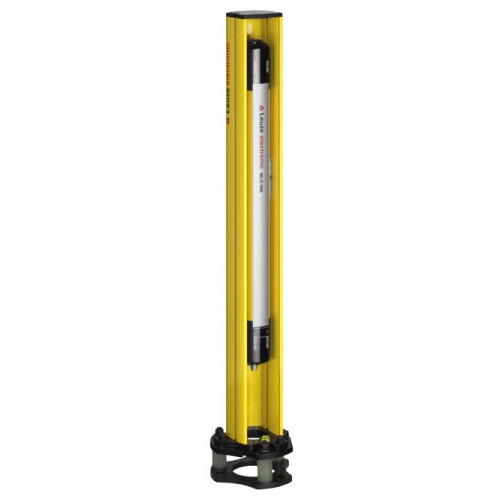

Thumbnail of product picture -
Leuze

Availability Back Order

£1,633.00
