66502600

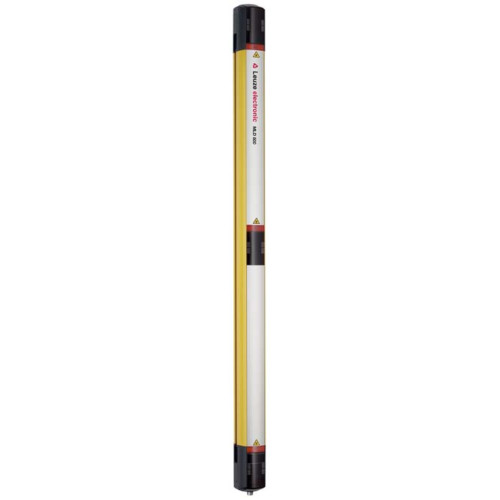

Multiple light beam safety device transmitter Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Operating range: 20 ... 70 m; Number of be

Manufacturer's No: MLD500-XT3L     Manufacturer: Leuze
Multiple light beam safety device transmitter Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Operating range: 20 ... 70 m; Number of beams: 3 Piece(s); Beam spacing: 400 mm; Connection: Connector, M12, Me

Availability Back Order

£777.00
  • Special version with integrated laser alignment aid
  • Type: Type 4, IEC/EN 61496
  • SIL: SIL 3, IEC 61508
  • Operating range: 20m to 70m
  • Number of beams: 3 beams
  • Beam spacing: 400mm
  • Connection: Connector type - M12, Metal, 5-pin
  • Dimensions: 52mm x 900mm x 64.7mm

Accessories

Others



Product

Manufacturer Material ID -
MLD500-XT3L
Net Weight -
2.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Number of semiconductor outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Type of interface for safety communication -
UN
Type of switching output of the OSSD -
UN
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Switching voltage of OSSD at state "high" -
- Volt
Detection power for test bodies -
400 Millimetre
Ambient temperature -
-30 Degrees celsius
Beam spacing -
400 Millimetre
Detection capability for test bodies -
400 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
900 Millimetre
Length -
64.7 Millimetre
Model -
Transmitter and receiver separated
Number of beams -
3
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Operation agent-safety class -
Safety class 3
Scope of delivery of the one-way system -
Transmitter
Transmission range of the safety field -
70 Metre
Type of electric connection -
Connector M12
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
Wavelength of the sensor -
850 Nanometre
Width -
52 Millimetre
With beam coding -
Thumbnail of product picture -
Leuze

Availability Back Order

£777.00
