50135453

Muting indicator Signaling: Optical; Supply voltage: 24 V, AC/DC; Current consumption, max.: 27 mA; Connection: Cable with connect

Manufacturer's No: M4-V1-MW3-DS-C-T-M12-200     Manufacturer: Leuze

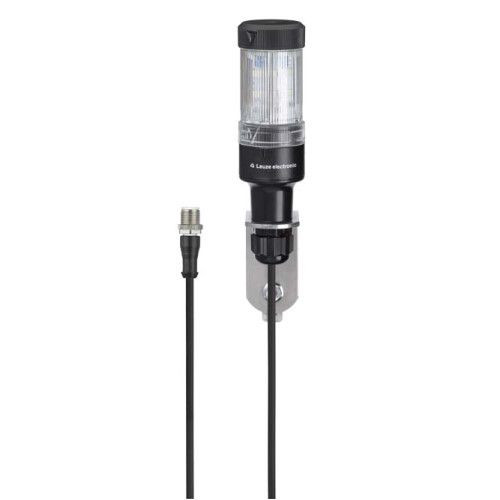

Muting indicator Signaling: Optical; Supply voltage: 24 V, AC/DC; Current consumption, max.: 27 mA; Connection: Cable with connector, 2,000 mm; Design: Cylindrical; Diameter: 40 mm; Illuminant: LED/2

Availability Back Order

£111.00
  • Signaling: Optical
  • Supply Voltage: 24 V AC/DC
  • Current Consumption: 27 mA (max)
  • Connection: Cable with connector, 2000 mm
  • Design: Cylindrical with a diameter of 40 mm
  • Illuminant: LED/24V
  • Signal Image: Continuous light
  • Lens Color: Clear
  • Angle of Radiation: 360°
  • Ambient Temperature: -30 to 60 °C

Read more

  • Degree of Protection: IP 66


Product

Manufacturer Material ID -
M4-V1-MW3-DS-C-T-M12-200
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85318070
Country of Origin -
AT
UNSPSC -
39121534

Technical Specification

Function -
UN
Colour housing -
UN
Lamp type -
UN
Operating voltage at DC -
- Volt
Degree of protection (NEMA) -
UN
Colour -
Clear
Voltage type -
AC/DC
Degree of protection (IP) -
IP66
Rated operating voltage Ue -
24 Volt
Voltage type for actuating -
AC/DC
Colour light 1 -
White
Continuous light function -
Degree of protection (IP rating) -
IP66
Depth -
200 Millimetre
Flashing light -
Operating voltage at AC 50 Hz -
24 Volt
Operating voltage at AC 60 Hz -
24 Volt
Outer diameter -
40 Millimetre
Voltage type (operating voltage) -
AC/DC
Thumbnail of product picture -
Leuze

Availability Back Order

£111.00
