2CSG252211R1202

ELR48P Residual Current Monitor

Manufacturer's No: ELR48P     Manufacturer: ABB

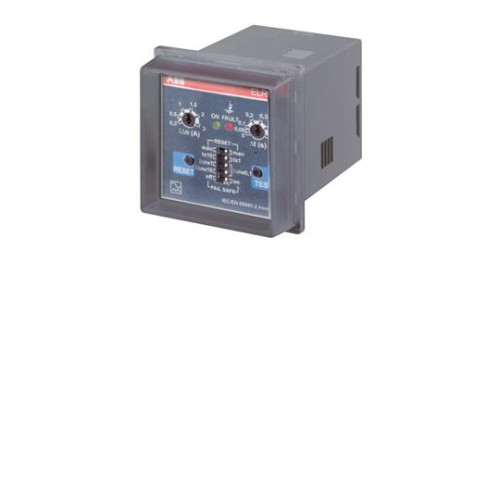

ELR48P Residual Current Monitor

Availability Back Order

£490.32
  • ELR48P Residual Current Monitor
  • Monitors and protects low voltage distribution network
  • Uses toroidal transformer for monitoring
  • Achieves protection in combination with MCBs and MCCBs
  • Compliant with protection standard 60947-2 Annex M
  • Offers cumulative operational time guarantee by the manufacturer


Product

Manufacturer Material ID -
ELR48P
Net Weight -
0.12kg

Additional Product Information

Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Rated frequency -
50 Hertz
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
Rated voltage -
110 Volt
Depth -
92 Millimetre
Function -
For mixed system
Height -
48 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
5 Second
Min. adjustable delay-on energization time -
0 Second
Response value amperage 1 -
30 Milliampere
Response value amperage 2 -
30000 Milliampere
Width -
48 Millimetre
