2CSR256440R3084

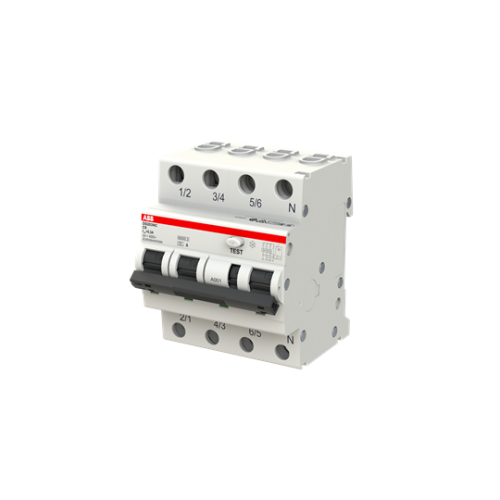

DS203NC C8 APR300 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DS203NCC8APR300     Manufacturer: ABB
DS203NC C8 APR300 Residual Current Circuit Breaker with Overcurrent Protection

Availability Back Order

£304.74
  • Model: DS203NC C8 APR300
  • Type: 3P+N Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
  • Modules: 4
  • Functions: Protects against short-circuit currents, overload, earth fault currents, indirect contacts, and provides additional protection against direct contacts.


Product

Manufacturer Material ID -
DS203NCC8APR300
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85363010
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP2X
Ambient temperature during operating -
-25 Degrees celsius
Anti-nuisance tripping version -
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
25 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP2X
Disconnection characteristic -
Undelayed
Frequency -
50/60 Hz
Leakage current type -
A
Number of poles (total) -
4
Number of protected poles -
3
Over voltage category -
3
Pollution degree -
2
Power loss -
4.2 Watt
Rated current -
8 Ampere
Rated fault current -
0.3 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity according to EN 61009 -
6 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
6 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
10 kiloampere
Rated voltage -
415 Volt
Recess depth -
69 Millimetre
Surge current capacity -
3 kiloampere
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -
ABB

Availability Back Order

£304.74
