7TCA091180R0236

REC M3 CT-NAVEO ESC-L4M WH

Manufacturer's No: CTSR2DEAM3     Manufacturer: ABB
REC M3 CT-NAVEO ESC-L4M WH

Availability Back Order

£258.39
  • Model: REC M3 CT-NAVEO ESC-L4M WH

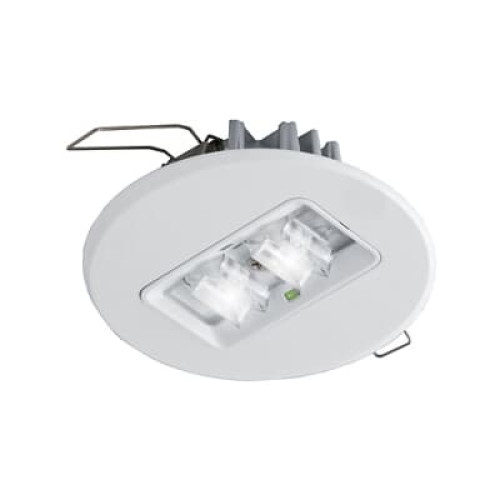

  • Serenga 2 Escape Route Recessed Luminaire
  • Lamp Type: LED
  • Lamp Power: 2 W
  • Lamp Output: 203 Lumens
  • Input Voltage: 220-240 V AC, 50 Hz
  • Operating Temperature: 5-40°C
  • Color: White


Product

Manufacturer Material ID -
CTSR2DEAM3
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
9405616000
Country of Origin -
GB
UNSPSC -
55121703

Technical Specification

Lamp included -
Energy efficiency class of integrated lamp -
A++, A+, A (LED)
Battery chemistry -
NiMH
Colour temperature -
5600 Kelvin
Conductor cross section -
2.5 Square millimetre
Connection type -
Other
Control gear -
LED driver constant current
Cover material -
Plastic transparent
Degree of protection (IP rating) -
IP42
Function -
Escape route lighting
Height/depth -
38 Millimetre
Housing colour -
White
Housing material -
Aluminium
Length -
226 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
3 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Built-in
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lighting heads -
1
Number of poles -
7
Outer diameter -
100 Millimetre
Power factor -
0.85
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
5 Degrees celsius
Rated luminous flux acc. IEC 62722-2-1 -
177 Lumen
Replaceable control gear -
Type of cabling -
Ending
Voltage type -
AC
Width -
100 Millimetre
With remote control -
