1SBL407001R1411

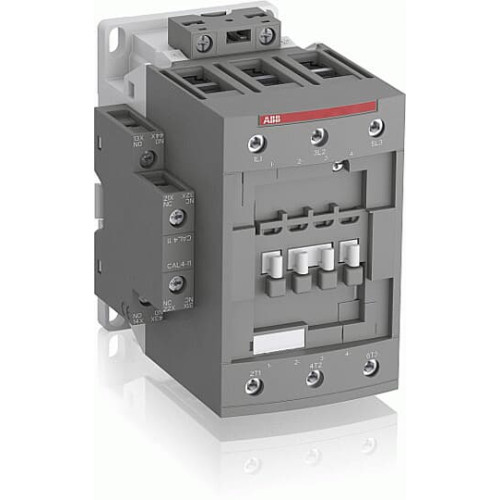

AF96-30-11-14 250-500V50/60HZ-DC Contactor

Manufacturer's No: AF96-30-11-14     Manufacturer: ABB
AF96-30-11-14 250-500V50/60HZ-DC Contactor

Availability Back Order

£445.78
  • AF96-30-11-14 3-pole contactor
  • Suitable for 1000V IEC or 600V UL applications
  • Pre-mounted auxiliary contacts and screw terminals
  • Controls motors up to 45 kW / 400V AC or 60 hp / 480V UL
  • Switches power circuits up to 130A AC-1 or 115A UL
  • Wide control voltage range: 250-500V 50/60Hz and DC
  • Built-in surge protection
  • Compact design with block type design
  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF96-30-11-14
Net Weight -
1.33kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
250 Volt
Rated control supply voltage Us at AC 60HZ -
250 Volt
Rated control supply voltage Us at DC -
250 Volt
Depth -
116 Millimetre
Height -
125.5 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
250 Volt
Rated control supply voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at DC -
250 Volt
Rated operation current Ie at AC-1, 400 V -
130 Ampere
Rated operation current Ie at AC-3, 400 V -
105 Ampere
Rated operation power at AC-3, 400 V -
45 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
82 Millimetre
ABB

Availability Back Order

£445.78
