1SBL377001R7011

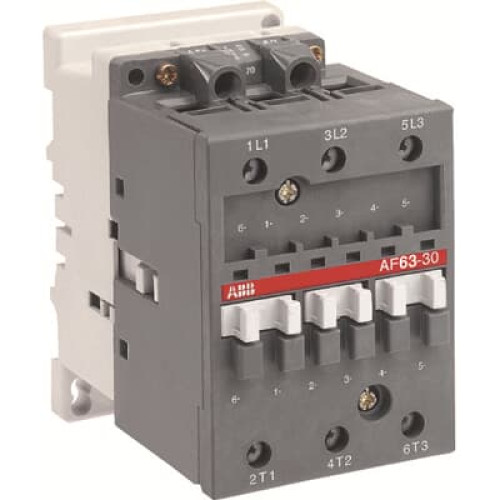

AF63-30-11 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor

Manufacturer's No: AF63-30-11     Manufacturer: ABB
AF63-30-11 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor

Availability Back Order

£443.32
  • AF63-30-11 Contactor
  • Voltage Range: 100-250V AC/DC
  • Suitable for controlling 3-phase motors
  • Can handle power circuits up to 690V AC and 220V DC
  • Electronic coil interface for wide control voltage range
  • Can accept various supply voltages for different countries
  • Suitable for AC or DC control circuits with voltage interruptions
  • Advantages:
    • Wide voltage range
    • Can manage large voltage variations
    • Reduced power consumption
    • Distinct closing and opening
    • Noise-free operation
    • Can withstand voltage interruptions or dips (? 20 ms)
  • Wide voltage range
  • Can manage large voltage variations

Read more

  • Reduced power consumption
  • Distinct closing and opening
  • Noise-free operation
  • Can withstand voltage interruptions or dips (? 20 ms)
  • Design: 3-pole contactors with block type design
  • Main poles and auxiliary contact blocks: 3 main poles and 2 built-in auxiliary contacts
  • Control circuit: AC or DC operated
  • Accessories: Wide range of accessories available


Product

Manufacturer Material ID -
AF63-30-11
Net Weight -
1.22kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Electrical data

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power at AC-3, 400 V -
30 Kilowatt
Rated operation current Ie at AC-3, 400 V -
65 Ampere
Rated operation current Ie at AC-1, 400 V -
115 Ampere
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Voltage type for actuating -
AC/DC

General data

Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of auxiliary contacts as normally closed contact -
1
Type of electrical connection of main circuit -
Screw connection
