1SFL447101R1111

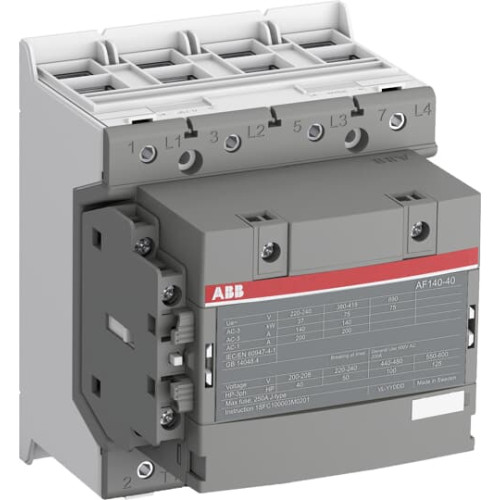

AF140-40-11-11 Contactor

Manufacturer's No: AF140-40-11-11     Manufacturer: ABB
AF140-40-11-11 Contactor

Availability Back Order

£606.24
  • Model: AF140-40-11-11
  • Configuration: 4 pole
  • Voltage: 690 V IEC or 600 V UL
  • Motor Control: Up to 75 kW / 400 V AC (AC-3)
  • Power Circuit Switching: Up to 200 A (AC-1) or 175 A UL general use
  • Control Voltage Range: 24-60 V 50/60 Hz and 20-60 V DC
  • Surge Protection: Built-in
  • Features: Pre-mounted auxiliary contacts and double clamp
  • Technology: AF technology for managing large control voltage variations and reducing panel energy consumption
  • Design: Block type design for easy extension with add-on auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AF140-40-11-11
Net Weight -
2.27kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Rated operation power at AC-3, 400 V -
75 Kilowatt
Depth -
128 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
200 Ampere
Rated operation current Ie at AC-3, 400 V -
140 Ampere
Rated operation power NEMA -
29.828 Kilowatt
Type of electrical connection of main circuit -
Cable clamp
Voltage type for actuating -
AC/DC
Width -
120 Millimetre
ABB

Availability Back Order

£606.24
