8WA10110DF21

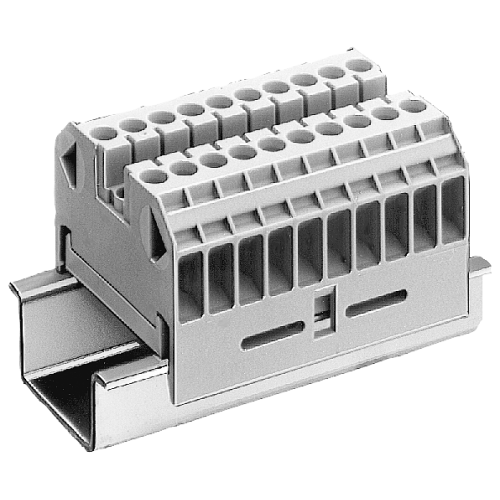

Through-type terminal thermoplast Screw terminal on both sides Terminal block 10-pole, beige Without

Manufacturer's No: 8WA1011-0DF21     Manufacturer: Siemens
Through-type terminal thermoplast Screw terminal on both sides Terminal block 10-pole, beige Without

Availability Back Order

POA

This product has been superseded by

8WH10000AF00

Please check compatibility before purchasing.

  • Through-type terminal thermoplast screw terminal
  • 10-pole terminal block in beige color
  • Product discontinued since 09/10/23
  • Successor model: 10 x 8WH10000AF00

Follow-up article



Product

Manufacturer Material ID -
8WA1011-0DF21
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
39121410

Technical Specification

Length -
41 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
61 Millimetre
Height at lowest possible mounting height -
26 Millimetre
Connection position -
Sideways
Colour -
Beige
Connectable conductor cross section fine-strand with cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-25 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10000AF00

Please check compatibility before purchasing.
