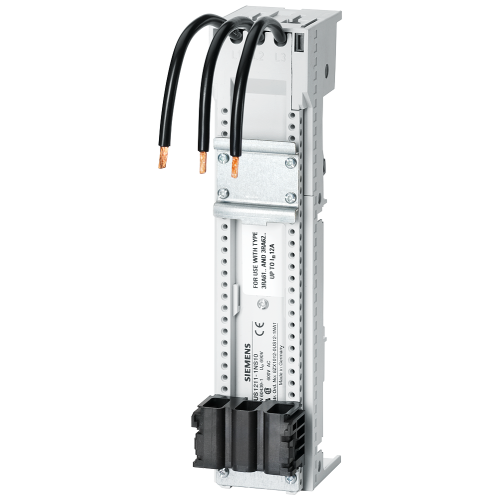

8US12111NS10

Busbar system Busbar center-to-center spacing 60 mm Device adapter, Width: 45 mm Bar thickness: 5.10

Manufacturer's No: 8US1211-1NS10     Manufacturer: Siemens
Busbar system Busbar center-to-center spacing 60 mm Device adapter, Width: 45 mm Bar thickness: 5.10

Availability Back Order

£67.45
  • Busbar system with center-to-center spacing of 60 mm
  • Device adapter width: 45 mm
  • Bar thickness: 5.10 mm
  • TT profile with 1 DIN rail 35 mm
  • For 3RA6 compact load feeder
  • Length: 200 mm
  • Rated voltage (Ue): 690 V
  • Rated current (IE): up to 32 A
  • Max. conductor cross-section: 6 mm²
  • Min. conductor length: 2 m

Read more

  • Notice: For rated current >12 A and short-circuit current > 25 kA, specific requirements apply
Price £4.70
Back Order
Product video


Product

Manufacturer Material ID -
8US1211-1NS10
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Type of accessory -
Other
Busbar distance -
60 Millimetre
Width of the adapter -
108 Millimetre
Min. busbar thickness -
5 Millimetre
Rated current In -
32 Ampere

Availability Back Order

£67.45
