857-153

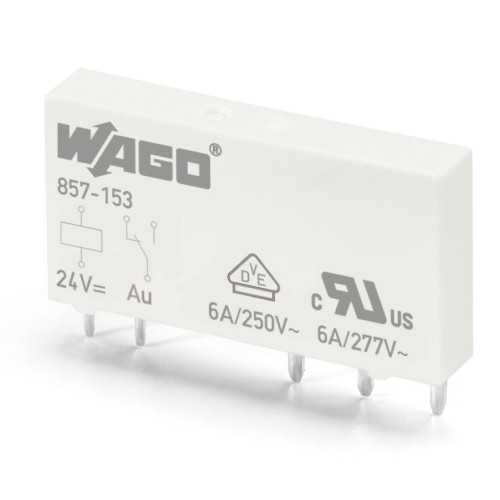

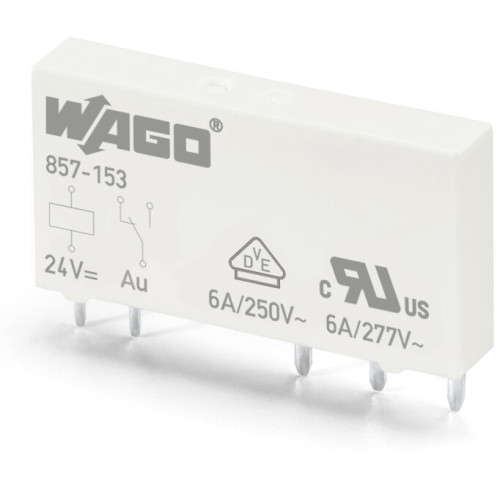

Pluggable miniature switching relay each 1 changeover contact (1 u) 24 VDC

Manufacturer's No: 857-153     Manufacturer: WAGO
Pluggable miniature switching relay each 1 changeover contact (1 u) 24 VDC

Availability Back Order

£5.13
  • Basic relay with 1 changeover contact
  • Nominal input voltage: 24 VDC
  • Limiting continuous current: 6 A
  • Gold contacts for improved durability
  • Module width: 5 mm
  • Module height: 15 mm

Accessories



Product

Manufacturer Material ID -
857-153
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Depth -
28 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
15 Millimetre
Nominal current -
6 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Plug-in connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
5 Millimetre

Availability Back Order

£5.13
