6XV18702F

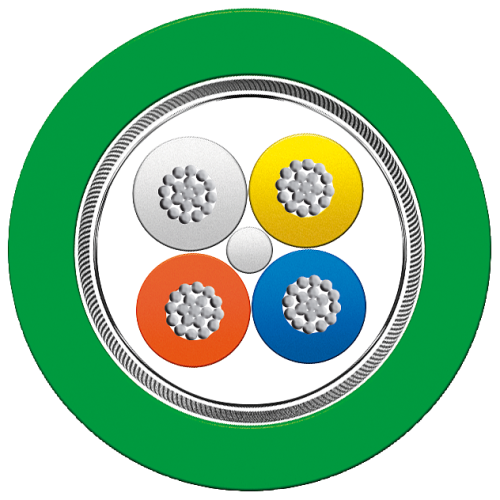

Industrial Ethernet TP Torsion Cable, 2x2 (PROFINET Type C), TP installation cable, 4-core, for use

Manufacturer's No: 6XV1870-2F     Manufacturer: Siemens
Industrial Ethernet TP Torsion Cable, 2x2 (PROFINET Type C), TP installation cable, 4-core, for use

View 3D

Availability Back Order

£8.00
  • Industrial Ethernet TP Torsion Cable
  • 2x2 configuration (PROFINET Type C)
  • TP installation cable, 4-core, shielded Cat5e
  • Designed for highly flexible applications with torsion requirements
  • Sold by the meter, with a maximum delivery length of 1000 m
  • Minimum order quantity of 20 m


Product

Manufacturer Material ID -
6XV1870-2F
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Nominal cross section conductor -
0.33 Square millimetre
Colour outer sheath -
Green
Diameter conductor -
0.76 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyurethane (PUR)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Nominal cross sectional area of conductor -
0.33 Square millimetre
Core insulation material -
Other
Core identification -
Colour
Flame retardant -
No
Stranding element -
Quad
Sheath colour -
Green
Category -
5E
Conductor Diameter -
0.76 Millimetre
Individual screen type -
None
Overall screen type -
Foil + braiding
Sheath material -
Polyurethane (PUR)
Conductor category -
Class 5 = flexible
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Number of stranding elements -
2
Protective sheath -
No
Number of cores -
4
Stranding -
Bundle
Outer diameter approx. -
6.5 Millimetre
NVP value -
70 Percentage
Reaction-to-fire according to EN 13501-6: Class -
Eca
Conductor surface -
Bare
Min. permitted bending radius, moving application with forced guidance -
65 Millimetre
Sheath material specification -
Other
Min. permitted bending radius, moving application/free movement -
65 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
65 Millimetre

Availability Back Order

£8.00
