6XV18403AH10

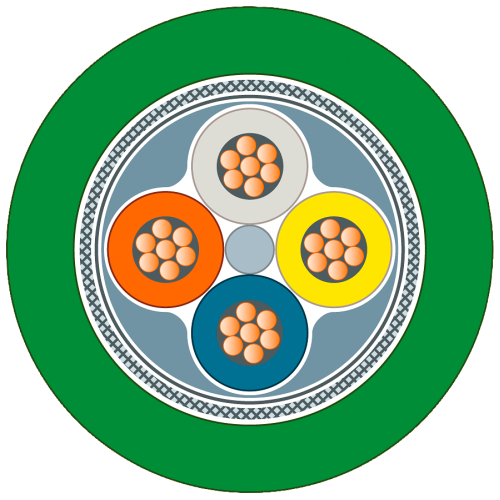

Industrial Ethernet FC TP Trailing Cable, 2x2 (PROFINET Type C), TP installation cable for Connectio

Manufacturer's No: 6XV1840-3AH10     Manufacturer: Siemens
Industrial Ethernet FC TP Trailing Cable, 2x2 (PROFINET Type C), TP installation cable for Connectio

View 3D

Availability Back Order

£6.00
  • Industrial Ethernet FC TP Trailing Cable
  • 2x2 configuration (PROFINET type C)
  • TP installation cable for FC outlet RJ45
  • Suitable for cable carrier applications
  • 4-core, shielded design
  • Cat5e standard
  • Rated for 4 million bending cycles
  • Maximum delivery unit: 2000 meters
  • Minimum order quantity: 20 meters


Product

Manufacturer Material ID -
6XV1840-3AH10
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Green
Diameter conductor -
0.75 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyurethane (PUR)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Core insulation material -
Other
Core identification -
Colour
Flame retardant -
No
Stranding element -
Quad
Sheath colour -
Green
Category -
5E
Conductor Diameter -
0.75 Millimetre
Individual screen type -
None
Overall screen type -
Foil + braiding
Sheath material -
Polyurethane (PUR)
Conductor category -
Class 2 = stranded
Permitted cable outer temperature during assembling/handling -
-20 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Number of stranding elements -
2
Protective sheath -
No
Number of cores -
4
Stranding -
Bundle
Outer diameter approx. -
6.5 Millimetre
NVP value -
66 Percentage
Reaction-to-fire according to EN 13501-6: Class -
Eca
Conductor surface -
Bare
Min. permitted bending radius, moving application with forced guidance -
49 Millimetre
Sheath material specification -
Other
Min. permitted bending radius, moving application/free movement -
49 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
49 Millimetre

Availability Back Order

£6.00
