6GK57938DL000AA0

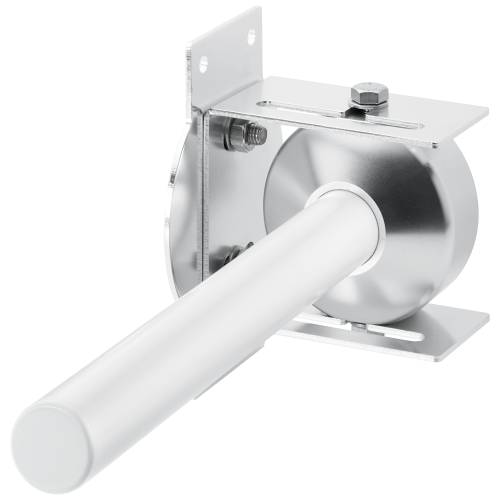

ANT793-8DL antenna, IWLAN, railway app., directivity, 5GHz 14dBi, N-female, IP66

Manufacturer's No: 6GK5793-8DL00-0AA0     Manufacturer: Siemens
ANT793-8DL antenna, IWLAN, railway app., directivity, 5GHz 14dBi, N-female, IP66

View 3D

Availability Back Order

£455.00
  • Model: ANT793-8DL IWLAN antenna
  • Polarization: Vertically and horizontally polarized
  • Directionality: Strong directional effect
  • Gain: 14 dBi
  • Frequency: 5 GHz
  • Connectivity: 2x N-female socket
  • Temperature Range: -45 to +70 °C (IP66 rated)
  • Application: Suitable for railway applications
  • Compliance: Wi-Fi compliant
  • Mounting: Wall or mast

Read more

  • Language: Compact instructions in German/English
  • Scope of Delivery: 1x ANT793-8DL antenna, 1x mounting aid for alignment
Product video


Product

Manufacturer Material ID -
6GK5793-8DL00-0AA0
Net Weight -
0.70kg

Additional Product Information

Commodity Code -
85291069
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Max. transmission range -
- Metre
Length of connection cable -
- Metre
Aerial gain -
- Antenna gain
Beam angle horizontal -
- Degrees
Beam angle vertical -
- Degrees
Degree of protection (IP) -
IP66
Polarization -
Directional
Frequency band -
5 GHz
Mounting method -
Wall mounting
Connection type -
Bus
Connection -
N
Ambient temperature during operating -
-40 Degrees celsius
Degree of protection (IP rating) -
IP66
Depth -
40 Millimetre
Height -
283 Millimetre
Indoor -
Outdoor -
Width -
100 Millimetre

Availability Back Order

£455.00
