6ES79720BB700XA0

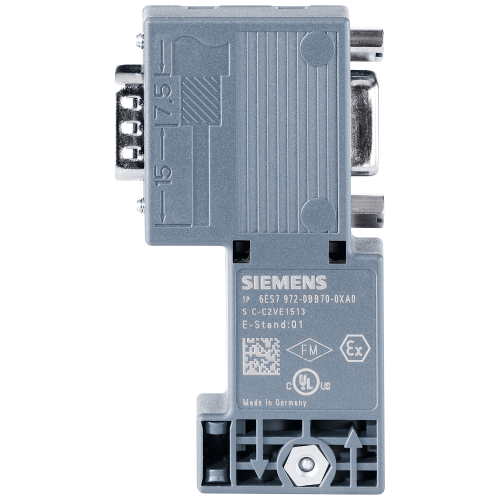

SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, 15.8x 72.2x 36.4 mm (WxH

Manufacturer's No: 6ES7972-0BB70-0XA0     Manufacturer: Siemens
SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, 15.8x 72.2x 36.4 mm (WxH

View 3D

Availability Back Order

£60.00
  • Connection plug for PROFIBUS with up to 12 Mbit/s
  • 90° cable outlet
  • Dimensions: 15.8 x 72.2 x 36.4 mm (W x H x D)
  • Insulation displacement method FastConnect
  • Includes PG receptacle


Product

Manufacturer Material ID -
6ES7972-0BB70-0XA0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Mounting method -
UN
Rated voltage -
- Volt
Number of conduit inlets -
-
Number of poles -
-
Contact type -
UN
Coating housing -
UN
Inflammability class of insulation material acc. with UL94 -
UN
Rated surge voltage -
- Kilovolt
Type of electric connection -
UN
Material of contact surface -
UN
Impact strength -
UN
Over voltage category -
UN
Pollution degree -
UN
Number of plug-in contact rows -
-
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Material insulation body -
UN
Material contact -
UN
Position cable feed -
UN
Rated current In -
- Ampere
Locking mechanism -
Swivel
Material housing -
Plastic
Operation temperature -
-25 Degrees celsius
Width -
15.8 Millimetre
Height -
72 Millimetre
Depth -
36.4 Millimetre
Type of locking -
Swivel
Housing material -
Plastic
Ambient temperature -
-40 Degrees celsius
Operating temperature -
-25 Degrees celsius
Degree of protection (IP), mounted -
IP20

Availability Back Order

£60.00
