6EP46836LB000AY0

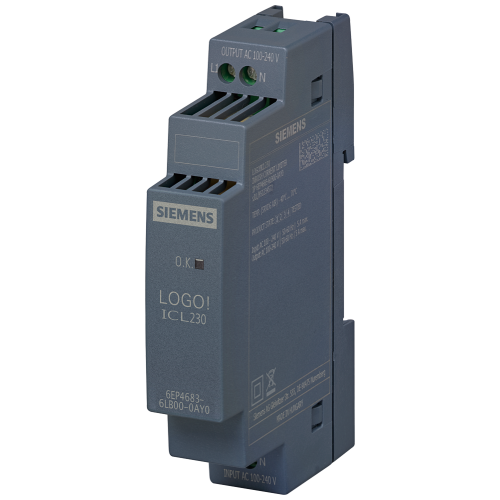

LOGO! ICL230 Switch on current limiter Input: AC 100-240 V Output: AC 100-240 V/5 A

Manufacturer's No: 6EP4683-6LB00-0AY0     Manufacturer: Siemens
LOGO! ICL230 Switch on current limiter Input: AC 100-240 V Output: AC 100-240 V/5 A

View 3D

Availability Back Order

£62.00
  • Inrush current limiter model: LOGO! ICL230
  • Input voltage: 100-240 V AC
  • Output voltage: 100-240 V AC
  • Output current: 5 A

Accessories



Product

Manufacturer Material ID -
6EP4683-6LB00-0AY0
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85049099
Country of Origin -
HU
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122330

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
1st secondary output voltage -
- Volt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 1 -
- Volt
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 1 -
- Ampere
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
130 Millimetre
Built-in width -
18 Millimetre
Type of electric connection -
Screw connection
Degree of protection (IP) -
IP20
Width -
18 Millimetre
Height -
90 Millimetre
Depth -
53 Millimetre
Recess height -
130 Millimetre
Recess width -
18 Millimetre
Modular version -
Voltage type of supply voltage -
AC
Rail mounting possible -
Wall mounting possible -
Degree of protection (IP rating) -
IP20
Direct mounting possible -
Max. output current 1 -
5 Ampere

Availability Back Order

£62.00
