6EP34477SB003AX0

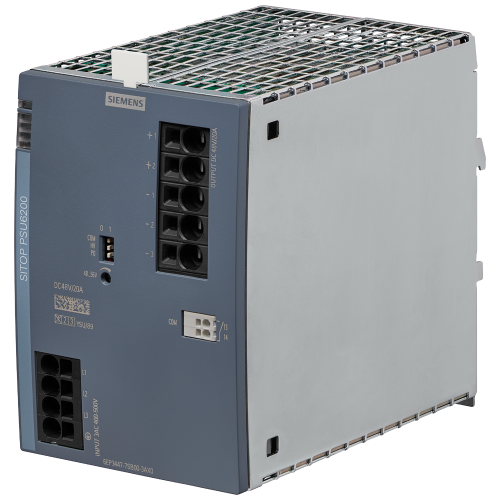

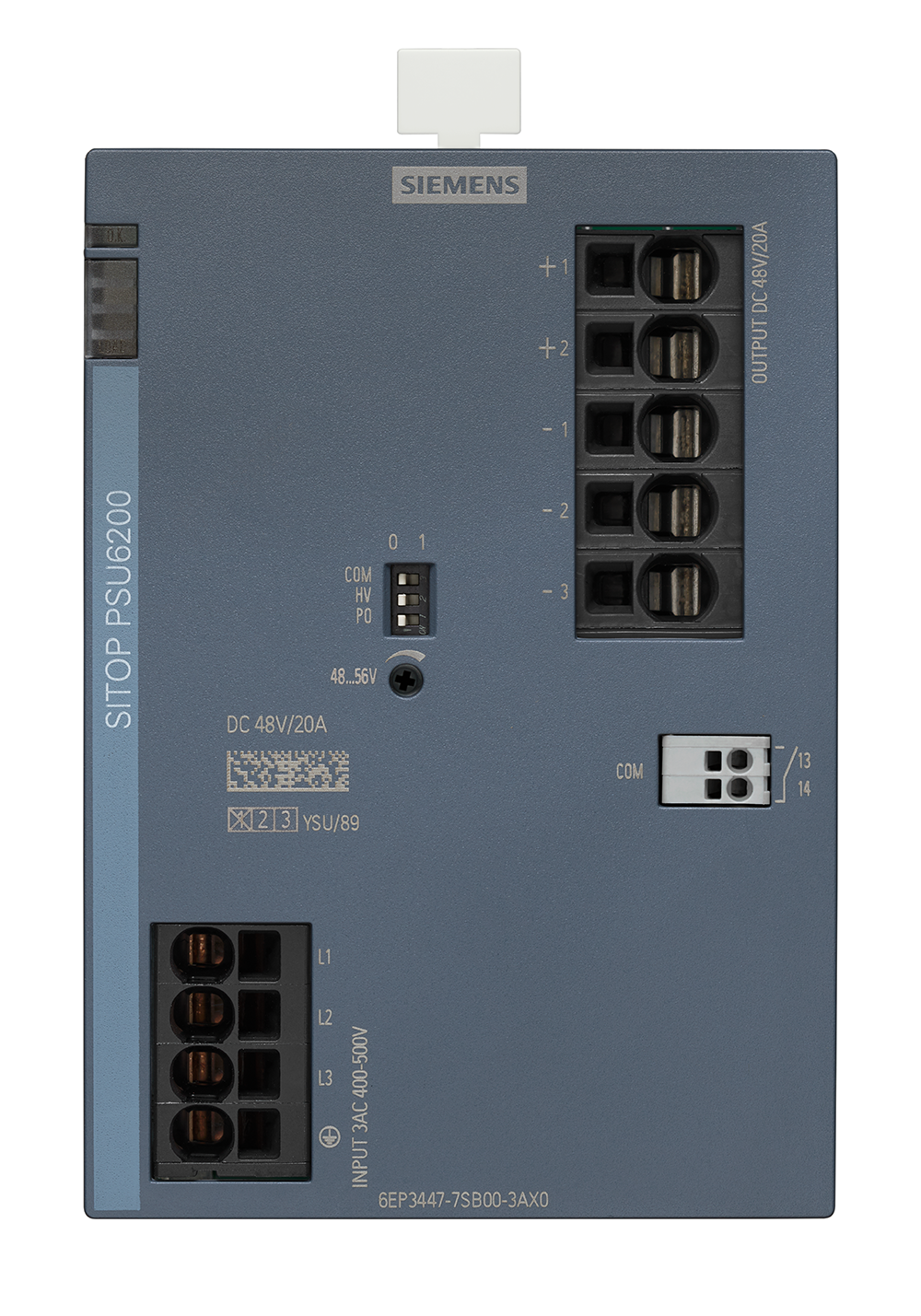

SITOP PSU6200/3AC/48VDC/20A

Manufacturer's No: 6EP3447-7SB00-3AX0     Manufacturer: Siemens
SITOP PSU6200/3AC/48VDC/20A

Availability Back Order

£414.00
  • Stabilized power supply: SITOP PSU6200
  • Input voltage: 400 - 500 V AC
  • Output voltage: 48 V DC
  • Output current: 20 A
  • Diagnostic interface included

Accessories



Product

Manufacturer Material ID -
6EP3447-7SB00-3AX0
Net Weight -
2.15kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
32121704

Technical Specification

Width -
95 Millimetre
Height -
135 Millimetre
Depth -
155 Millimetre
Recess height -
225 Millimetre
Recess width -
95 Millimetre
Modular version -
Voltage type of supply voltage -
AC/DC
Power output -
960 Watt
Output voltage stabilized -
Rail mounting possible -
Stabilized -
Degree of protection (IP rating) -
IP20
1st secondary output voltage -
48 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Max. output current 1 -
20 Ampere
Nominal value output voltage 1 -
48 Volt
Nominal value output current 1 -
20 Ampere

Availability Back Order

£414.00
