6EP33467SB003AX0

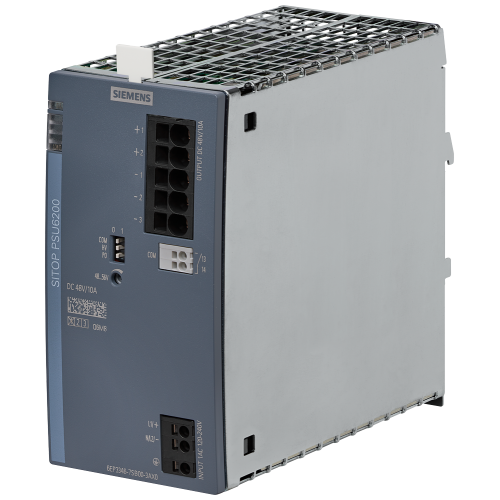

SITOP PSU6200/1AC/DC48V/10A

Manufacturer's No: 6EP3346-7SB00-3AX0     Manufacturer: Siemens

Availability Back Order

£295.00
  • Stabilized power supply: SITOP PSU6200
  • Input voltage: 120/230 V AC
  • Output voltage: 48 V DC
  • Output current: 10 A
  • Diagnostic interface included

Accessories



Product

Manufacturer Material ID -
6EP3346-7SB00-3AX0
Net Weight -
1.65kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32121704

Technical Specification

Type of electric connection -
Spring clamp connection
1st secondary output voltage -
48 Volt
Degree of protection (IP rating) -
IP20
Depth -
155 Millimetre
Height -
135 Millimetre
Max. output current 1 -
10 Ampere
Modular version -
Nominal value output current 1 -
10 Ampere
Nominal value output voltage 1 -
48 Volt
Output voltage stabilized -
Power output -
480 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
240 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Rated supply voltage at DC -
110 Volt
Recess height -
225 Millimetre
Recess width -
70 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Voltage type of supply voltage -
AC/DC
Width -
70 Millimetre
