6EP19612BA51

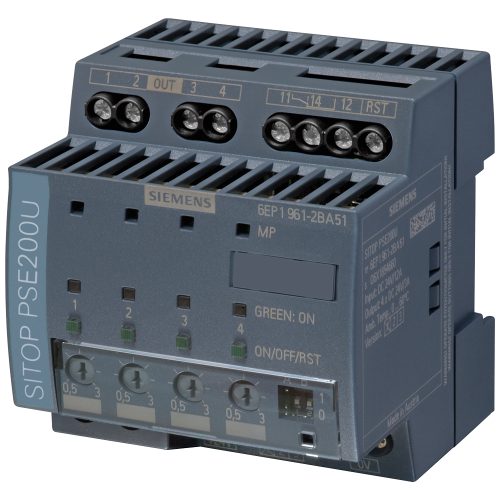

SITOP PSE200U 3 A NEC CLASS 2 Selectivity module 4-channel input: DC 24 V/12 A output: 24 V/4x 3A NE

Manufacturer's No: 6EP1961-2BA51     Manufacturer: Siemens
SITOP PSE200U 3 A NEC CLASS 2 Selectivity module 4-channel input: DC 24 V/12 A output: 24 V/4x 3A NE

View 3D

Availability Back Order

£125.00
  • Input: 24 V DC/12 A
  • Output: 24 V, 4 channels, each with 3 A
  • NEC Class 2 selectivity module
  • Threshold value adjustable from 0.5 A to 3 A
  • Common signaling contact included

Accessories



Product

Manufacturer Material ID -
6EP1961-2BA51
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85363010
Country of Origin -
AT
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Current measurement range -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Min. adjustable delay-on energization time -
- Second
Max. permitted off-delay time -
- Second
Min. adjustable off-delay time -
- Second
Rated control supply voltage Us at DC -
22 Volt
Width -
72 Millimetre
Height -
80 Millimetre
Depth -
72 Millimetre
Contains function DC-voltage over current -
Function DC-current hysteresis -
Type of electric connection -
Screw connection
Rated control supply voltage at DC -
22 Volt
Max. permitted delay-on energization time -
5 Second
Voltage type for actuating -
DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1

Availability Back Order

£125.00
