6EP19612BA61

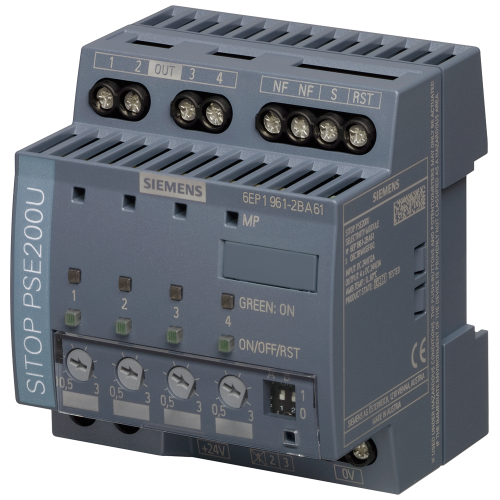

SITOP PSE200U selectivity module, 24 V DC/4 x 0.5-3A w. single-channel signaling

Manufacturer's No: 6EP1961-2BA61     Manufacturer: Siemens
SITOP PSE200U selectivity module, 24 V DC/4 x 0.5-3A w. single-channel signaling

View 3D

Availability Back Order

£125.00
  • SITOP PSE200U 3 A NEC CLASS 2 selectivity module
  • Input: 24 V DC/12 A
  • Output: 24 V/4x 3 A
  • NEC class 2 threshold value adjustable: 0.5-3 A
  • Status message for each output

Accessories



Product

Manufacturer Material ID -
6EP1961-2BA61
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85363010
Country of Origin -
AT
RoHs Compliance -
Yes
UNSPSC -
39122330

Technical Specification

Current measurement range -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Min. adjustable delay-on energization time -
- Second
Max. permitted off-delay time -
- Second
Min. adjustable off-delay time -
- Second
Rated control supply voltage Us at DC -
22 Volt
Width -
72 Millimetre
Height -
80 Millimetre
Depth -
72 Millimetre
Contains function DC-voltage over current -
Function DC-current hysteresis -
Type of electric connection -
Screw connection
Rated control supply voltage at DC -
22 Volt
Max. permitted delay-on energization time -
5 Second
Voltage type for actuating -
DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
0
