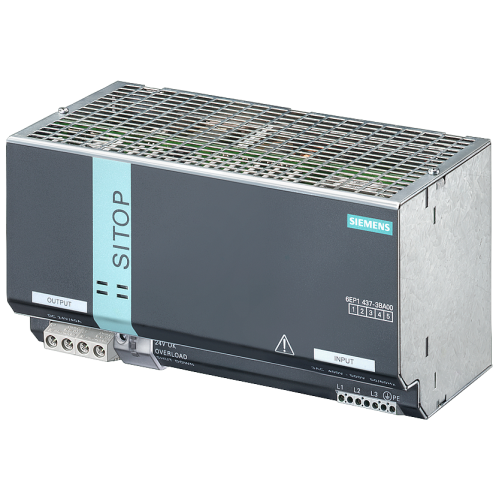

6EP14373BA008AA0

SITOP modular plus 40 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/40 A Option fo

Manufacturer's No: 6EP1437-3BA00-8AA0     Manufacturer: Siemens
SITOP modular plus 40 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/40 A Option fo

View 3D

Availability Back Order

£590.00
  • Input: 3-phase AC 400-500 V
  • Output: 24 V DC, 40 A
  • Option for protective varnish coating

Accessories



Product

Manufacturer Material ID -
6EP1437-3BA00-8AA0
Net Weight -
3.55kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
240 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
125 Millimetre
Height -
125 Millimetre
Max. output current 1 -
40 Ampere
Modular version -
Nominal value output current 1 -
40 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
960 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
400 Volt
Rated supply voltage at AC 60 Hz -
500 Volt
Recess height -
225 Millimetre
Recess width -
240 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
240 Millimetre

Availability Back Order

£590.00
