6ED10574CA000AA0

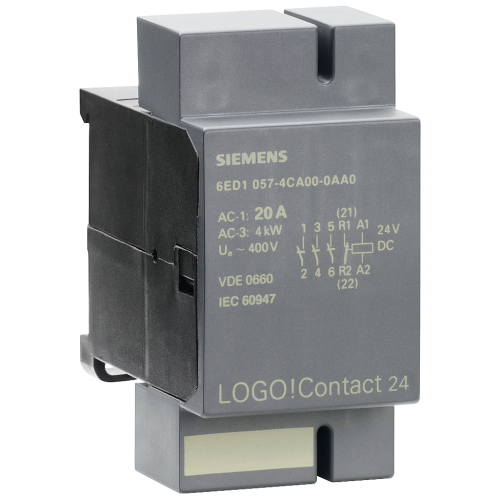

LOGO! contact 24 Switching module for direct switching of resistive loads up to 20 A and motors up t

Manufacturer's No: 6ED1057-4CA00-0AA0     Manufacturer: Siemens
LOGO! contact 24 Switching module for direct switching of resistive loads up to 20 A and motors up t

View 3D

Availability Back Order

£19.00
  • Switching module for resistive loads up to 20 A and motors up to 4 kW
  • Operating voltage: 24 V DC
  • Configuration: 3 normally open contacts + 1 normally closed contact
  • EAN: 4025515050742


Product

Manufacturer Material ID -
6ED1057-4CA00-0AA0
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
TR
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Width -
36 Millimetre
Height -
72 Millimetre
Depth -
55 Millimetre
Switching current -
20 Ampere
With timer -
Number of digital inputs -
0
Number of digital outputs -
4
Number of analogue inputs -
0
Number of analogue outputs -
0
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
With relay output -
Rail mounting possible -
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Front built-in possible -
Wall mounting/direct mounting -
Supply voltage DC -
20.4 Volt

Availability Back Order

£19.00
