6AV21283QB360AX0

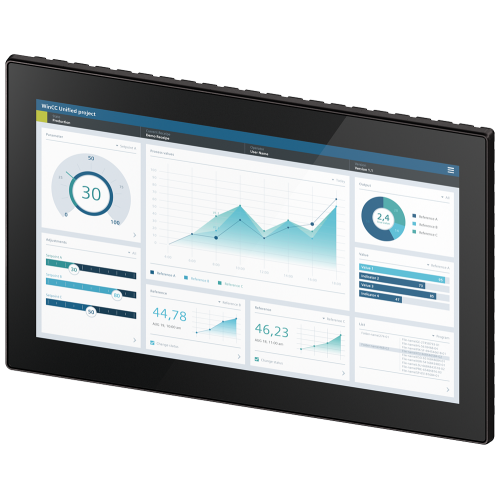

SIMATIC HMI MTP1500, Unified Comfort Panel, neutral, touch operation, 15.6" widescreen TFT display

Manufacturer's No: 6AV2128-3QB36-0AX0     Manufacturer: Siemens
SIMATIC HMI MTP1500, Unified Comfort Panel, neutral, touch operation, 15.6" widescreen TFT display

View 3D

Availability Back Order

POA

This product has been superseded by

6AV21283QB360AX1

Please check compatibility before purchasing.

  • SIMATIC HMI MTP1500
  • Unified Comfort Panel
  • 15.6" widescreen TFT display
  • Touch operation
  • Product cancelled since: 01/07/22
  • Successor available: 6AV2128-3QB36-0AX1
  • Sparepart product
Product video
Product video


Product

Manufacturer Material ID -
6AV2128-3QB36-0AX0
Net Weight -
4.30kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
39121521

Technical Specification

Useful project memory/user memory -
- kiloByte (1000 Byte)
Number of password levels -
-
Number of interfaces PROFINET -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of grey-scales/blue-scales of display -
-
Touch technology -
UN
Degree of protection (NEMA), front side -
UN
Built-in depth -
73 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
257 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
16777216
Number of function buttons, programmable -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
1366
Number of pixels, vertical -
768
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
73 Millimetre
Screen diagonal -
15.6 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
398 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
With SW interfaces -

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV21283QB360AX1

Please check compatibility before purchasing.
