6SL31201TE320AA4

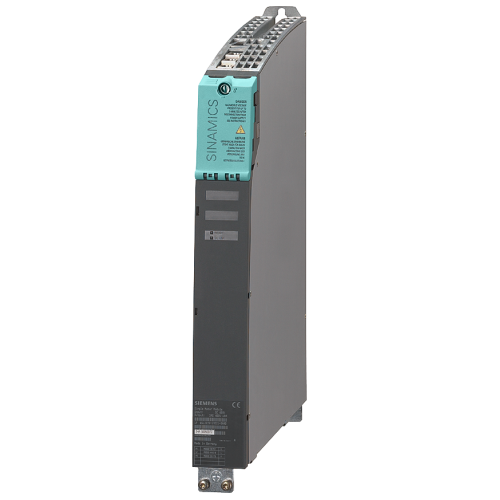

SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 200A OUTPUT: at 8 kHz / 140A FRA

Manufacturer's No: 6SL3120-1TE32-0AA4     Manufacturer: Siemens
SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 200A OUTPUT: at  8 kHz / 140A FRA

Availability Back Order

£10,236.09
  • Input: DC 600V
  • Output: 3AC 400V, 200A
  • Output Frequency: 8 kHz
  • Output Current: 140A
  • Frame Size: Booksize
  • Internal Air Cooling
  • Optimized Pulse Sample
  • Support of Extended Safety Integrated Functions
  • Includes Drive-CLIQ Cable


Product

Manufacturer Material ID -
6SL3120-1TE32-0AA4
Net Weight -
24.04kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
EAR99S / N
Minimum Order Quantity -
1
UNSPSC -
32121705

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Degree of protection (IP) -
UN
Mains voltage -
- Volt
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Number of phases input -
UN
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Depth -
270 Millimetre
Height -
629 Millimetre
Max. output at linear load at rated output voltage -
76 Kilowatt
Max. output frequency -
600 Hertz
Width -
300 Millimetre

Availability Back Order

£10,236.09
