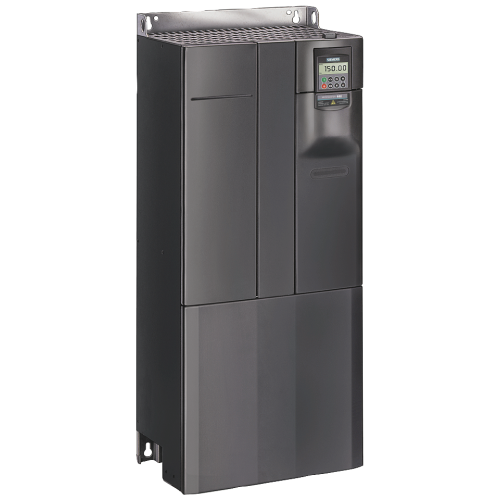

6SE64402AD345FA1

MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 4

Manufacturer's No: 6SE6440-2AD34-5FA1     Manufacturer: Siemens
MICROMASTER 440 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ CONSTANT TORQUE POWER 4

Availability Back Order

POA
  • Model: MICROMASTER 440 with built-in Class A filter
  • Input: 3AC 380-480 V, 47-63 Hz
  • Power: 45 kW constant torque, 55 kW squared torque
  • Overload: 150% for 60 seconds, 200% for 3 seconds
  • Dimensions: 1150 x 350 x 320 mm (H x W x D)
  • Protection: IP20
  • Ambient Temperature: -10 to +50°C
  • Does not include AOP/BOP


Product

Manufacturer Material ID -
6SE6440-2AD34-5FA1
Net Weight -
76.50kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32121705

Technical Specification

Number of digital outputs -
-
Mains frequency -
UN
Degree of protection (NEMA) -
UN
Width -
350 Millimetre
Height -
1150 Millimetre
Depth -
320 Millimetre
Number of digital inputs -
6
Number of analogue inputs -
2
Number of analogue outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for PROFIBUS -
Supporting protocol for CAN -
Supporting protocol for DeviceNet -
Supporting protocol for other bus systems -
Degree of protection (IP) -
IP20
With PC connection -
Mains voltage -
380 Volt
4-quadrant operation possible -
Number of interfaces PROFINET -
0
Type of converter -
U converter
Number of phases output -
3
Number of phases input -
3
Integrated breaking resistance -
Application in industrial area permitted -
Max. output frequency -
650 Hertz
Max. output at linear load at rated output voltage -
45 Kilowatt
Max. output at quadratic load at rated output voltage -
55 Kilowatt
Relative symmetric net voltage tolerance -
10 Percentage
Relative symmetric net frequency tolerance -
10 Percentage
Max. output voltage -
480 Volt
Nominal output current I2N -
90 Ampere

Availability Back Order

POA
