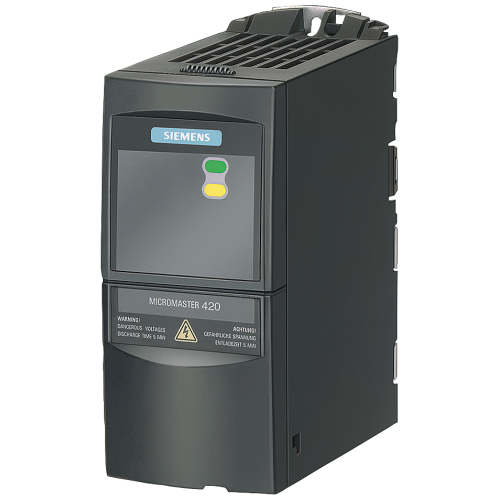

6SE64202UD155AA1

MICROMASTER 420 without filter 380-480 V 3 AC +10/-10% 47-63 Hz Constant torque 0.55kW Overload 150

Manufacturer's No: 6SE6420-2UD15-5AA1     Manufacturer: Siemens
MICROMASTER 420 without filter 380-480 V 3 AC +10/-10% 47-63 Hz Constant torque 0.55kW Overload 150

Availability Back Order

POA
  • Model: MICROMASTER 420 without filter
  • Input Voltage: 380-480 V 3 AC +/-10%, 47-63 Hz
  • Power: 0.55 kW
  • Overload Capacity: 150% for 60 seconds
  • Square-law Torque: 0.55 kW
  • Dimensions: 173 x 73 x 149 mm (H x W x D)
  • Degree of Protection: IP20
  • Ambient Temperature: -10 to +50°C


Product

Manufacturer Material ID -
6SE6420-2UD15-5AA1
Net Weight -
1.33kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32121705

Technical Specification

Number of digital outputs -
-
Mains frequency -
UN
Max. output at quadratic load at rated output voltage -
- Kilowatt
Degree of protection (NEMA) -
UN
Width -
73 Millimetre
Height -
173 Millimetre
Depth -
149 Millimetre
Number of digital inputs -
3
Number of analogue inputs -
1
Number of analogue outputs -
1
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for PROFIBUS -
Supporting protocol for CAN -
Supporting protocol for DeviceNet -
Supporting protocol for other bus systems -
Degree of protection (IP) -
IP20
With PC connection -
Mains voltage -
380 Volt
Number of interfaces PROFINET -
0
Type of converter -
U converter
Number of phases output -
3
Number of phases input -
3
Max. output frequency -
650 Hertz
Max. output at linear load at rated output voltage -
0.55 Kilowatt
Relative symmetric net voltage tolerance -
10 Percentage
Relative symmetric net frequency tolerance -
10 Percentage
Max. output voltage -
480 Volt
Nominal output current I2N -
1.6 Ampere

Availability Back Order

POA
