6ES75152RM000AB0

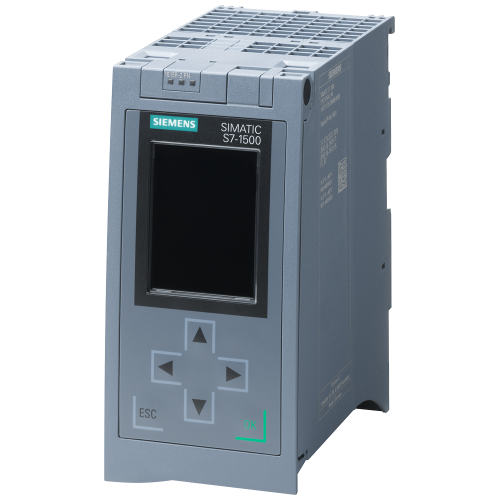

CPU 1515R-2 PN, 500 kB / 3 MB, 2xPN interface with 2 port switch, requires MMC

Manufacturer's No: 6ES7515-2RM00-0AB0     Manufacturer: Siemens
CPU 1515R-2 PN, 500 kB / 3 MB, 2xPN interface with 2 port switch, requires MMC

View 3D

Availability Back Order

POA

This product has been superseded by

6ES75152RN030AB0

Please check compatibility before purchasing.

  • Model: CPU 1515R-2 PN
  • Work Memory: 500 KB for program, 3 MB for data
  • Interfaces: 2x PROFINET (1x with 2-port switch)
  • Requires SIMATIC memory card
  • Special release required for compatibility

Mandatory additional product

Selectable mandatory product

Follow-up article

Spare part



Product

Manufacturer Material ID -
6ES7515-2RM00-0AB0
Net Weight -
0.90kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
With display -
Number of interfaces PROFINET -
2
Width -
70 Millimetre
Model -
Modular
Height -
147 Millimetre
Depth -
129 Millimetre
Display -
Number of digital inputs -
0
Number of digital outputs -
0
Number of analogue inputs -
0
Number of analogue outputs -
0
Voltage type of supply voltage -
DC
Type of memory -
Other
Memory size -
3500 kiloByte (1000 Byte)
Processing time (1K, binary operation) -
0.06 Millisecond
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Supporting protocol for MODBUS -
Redundancy -
Rail mounting possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
System accessory -
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Supporting protocol for PROFINET IO -
Supply voltage DC -
19.2 Volt

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6ES75152RN030AB0

Please check compatibility before purchasing.
