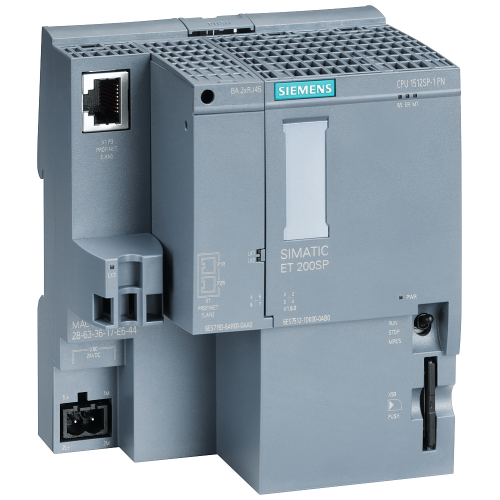

6ES75121DK010AB0

CPU 1512SP-1 PN, 200 kB / 1 MB, 1xPN interface with 3 ports (1xRJ45, 2x via BusAdapter (RJ45 or FC)), requires MMC

Manufacturer's No: 6ES7512-1DK01-0AB0     Manufacturer: Siemens
CPU 1512SP-1 PN, 200 kB / 1 MB, 1xPN interface with 3 ports (1xRJ45, 2x via BusAdapter (RJ45 or FC)), requires MMC

View 3D

Availability Back Order

POA
  • Model: CPU 1512SP-1 PN
  • Memory: 200 KB for program, 1 MB for data
  • Interfaces: 1xPN interface with 3 ports (1xRJ45, 2x via BusAdapter (RJ45 or FC))
  • Communication: PROFINET IRT with 3-port switch, 48 ns bit performance
  • Expandability: Up to 64 I/O modules
  • Compatibility: Requires MMC, SIMATIC DP, BusAdapter for Port 1 and 2
  • Features: Modular, scalable, and flexible distributed I/O system
  • Installation: Small footprint, suitable for control boxes near machines
  • Scalability: Modules can be plugged directly into ET 200SP CPU or connected to central controller via PROFINET or PROFIBUS
  • Module Variety: Standard (ST), High Feature (HF), High Speed (HS), Basic (BA)

Read more

  • Ease of Use: Tool-free wiring, channel-precise diagnostic functions
  • Hot Swapping: Capability to swap modules and terminal boxes during operation
  • Compatibility: Interface modules available with integrated CPU and PROFINET connections
  • Requirements: SIMATIC Memory Card needed for operation

Accessories

Follow-up article

Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7512-1DK01-0AB0
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Type of electric connection -
UN
Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Type of output voltage -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
1
Performance level acc. EN ISO 13849-1 -
None
STATFLAG -
A
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
117 Millimetre
Input voltage at DC -
19.2 Volt
Max. input current DC -
0.9 Ampere
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
80
Rail mounting possible -
Supporting protocol for ASI -
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
100 Millimetre
With optical interface -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -

Availability Back Order

POA
