6ES75111AK020AB0

CPU 1511-1 PN, 150 kB / 1 MB, 1xPN interface with 2 port switch, requires MMC

Manufacturer's No: 6ES7511-1AK02-0AB0     Manufacturer: Siemens
CPU 1511-1 PN, 150 kB / 1 MB, 1xPN interface with 2 port switch, requires MMC

View 3D

Availability Back Order

POA

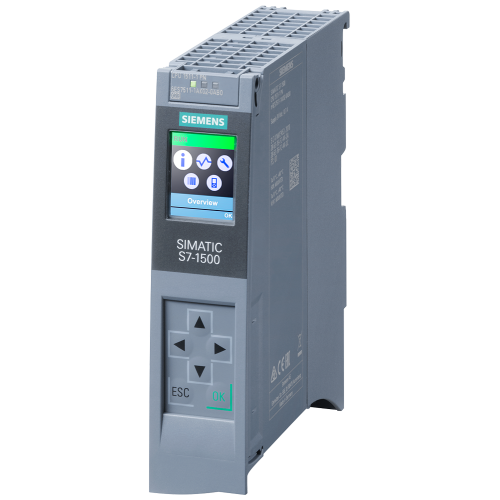

  • SIMATIC S7-1500, CPU 1511-1 PN
  • Central processing unit with 150 KB working memory for program and 1 MB for data
  • Interface: PROFINET IRT with 2-port switch
  • 60 ns bit-performance
  • Requires SIMATIC memory card

Mandatory additional product

Selectable mandatory product

Follow-up article

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6ES7511-1AK02-0AB0
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
With display -
Number of interfaces PROFINET -
1
Depth -
129 Millimetre
Display -
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
147 Millimetre
Memory size -
1150 kiloByte (1000 Byte)
Model -
Modular
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
0
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.06 Millisecond
Rail mounting possible -
Supply voltage DC -
19.2 Volt
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
Other
Voltage type of supply voltage -
DC
Width -
35 Millimetre
