6ES75101SJ010AB0

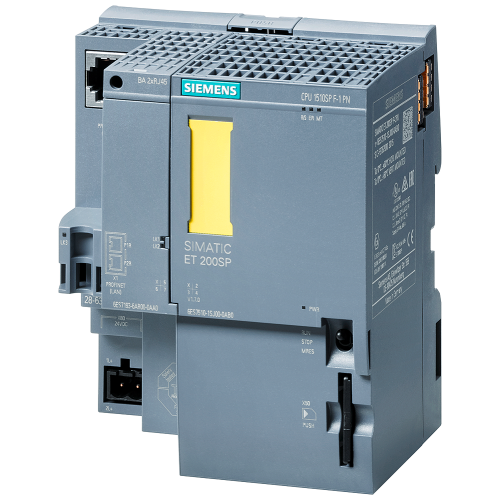

CPU 1510SP F-1 PN, 150 kB / 750 kB, 1xPN interface with 3 ports (1xRJ45, 2x via BusAdapter (RJ45 or FC)), requires MMC

Manufacturer's No: 6ES7510-1SJ01-0AB0     Manufacturer: Siemens
CPU 1510SP F-1 PN, 150 kB / 750 kB, 1xPN interface with 3 ports (1xRJ45, 2x via BusAdapter (RJ45 or FC)), requires MMC

View 3D

Availability Back Order

POA
  • Model: CPU 1510SP F-1 PN
  • Memory: 150 KB for program, 750 KB for data
  • Interface: 1xPN with 3 ports (1xRJ45, 2x via BusAdapter)
  • PROFINET IRT with 3-port switch, 72 ns bit performance
  • Requires SIMATIC Memory Card
  • Modular and scalable distributed I/O system
  • Small footprint, suitable for small control boxes near machines
  • Expandable with up to 64 I/O modules
  • Modules available with standard, high feature, high speed, and basic functions
  • Easy application with tool-free wiring and channel-precise diagnostic functions

Read more

  • Hot swapping capability for module and terminal box replacement during operation
  • Interface modules with integrated CPU and PROFINET connections available
  • Requires SIMATIC Memory Card for operation

Accessories

Follow-up article

Product video
Product video


Product

Manufacturer Material ID -
6ES7510-1SJ01-0AB0
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
-
Siemens
Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Type of output voltage -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
1
Performance level acc. EN ISO 13849-1 -
Level e
STATFLAG -
A
Width -
100 Millimetre
Height -
117 Millimetre
Depth -
75 Millimetre
Suitable for safety functions -
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Type of voltage (input voltage) -
DC
Supporting protocol for TCP/IP -
Supporting protocol for ASI -
Supporting protocol for PROFIBUS -
Supporting protocol for MODBUS -
Number of slots -
80
With pluggable modules, digital I/O -
With pluggable modules, analogue I/O -
With pluggable modules, communication modules -
With pluggable modules, function and technology modules -
With pluggable modules, central modules -
With pluggable modules, others -
Type of electric connection -
Screw-/spring clamp connection
Rail mounting possible -
Bus coupler for modular station connection available -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Fieldbus connection over separate bus coupler possible -
System accessory -
Degree of protection (IP rating) -
IP20
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces Wireless -
0
Wall mounting/direct mounting -
Input voltage at DC -
19.2 Volt
Max. input current DC -
0.9 Ampere
Performance level acc. to EN ISO 13849-1 -
Level e
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
SIL according to IEC 61508 -
3
