6ES71934CG300AA0

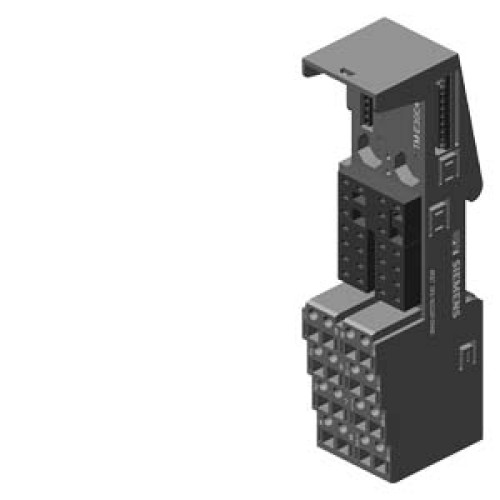

ET200S TM-E 4x4, Terminal Module: 4x4 terminal Cage Clamp type, type C

Manufacturer's No: 6ES7193-4CG30-0AA0     Manufacturer: Siemens
ET200S TM-E 4x4, Terminal Module: 4x4 terminal Cage Clamp type, type C

View 3D

Availability Back Order

POA
  • Terminal Module: ET200S TM-E 4x4
  • Type: Cage Clamp, Type C
  • Compatibility: SIMATIC DP
  • Module Type: TM-E30C44-01
  • Overall Width: 30 mm
  • Terminal Type: Spring-type
  • Terminal Connections: 4x4
  • Terminal Access: No access to AUX1


Product

Manufacturer Material ID -
6ES7193-4CG30-0AA0
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Front build in possible -
Width -
30 Millimetre
Height -
132 Millimetre
Depth -
43 Millimetre
Type of voltage (input voltage) -
DC
Number of slots -
2
With pluggable modules, function and technology modules -
Rail mounting possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
System accessory -
Output voltage at DC -
20.4 Volt
Wall mounting/direct mounting -
Input voltage at DC -
20.4 Volt
Max. output current DC -
10 Ampere
Max. input current DC -
10 Ampere
Type of output voltage -
DC

Availability Back Order

POA
