6ES71466FF000AB0

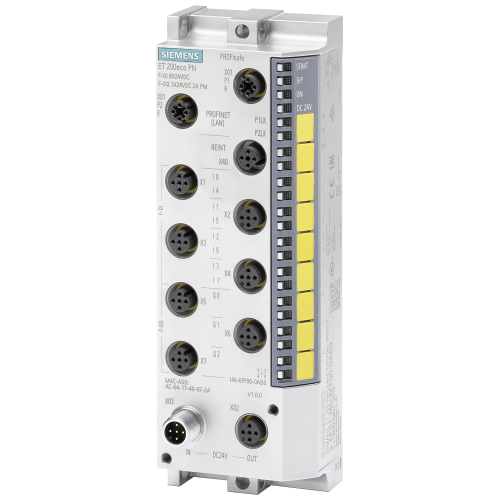

SIMATIC DP, ET 200eco PN, F-DI 8x24V /F-DQ 3x24V 2A , M12 PROFIsafe, up to PL E (ISO 13849), up to S

Manufacturer's No: 6ES7146-6FF00-0AB0     Manufacturer: Siemens
SIMATIC DP, ET 200eco PN, F-DI 8x24V /F-DQ 3x24V 2A , M12 PROFIsafe, up to PL E (ISO 13849), up to S

View 3D

Availability In Stock

£813.00
  • SIMATIC DP ET 200eco PN
  • F-DI: 8 inputs, 24V
  • F-DQ: 3 outputs, 24V, 2A
  • M12 PROFIsafe connector
  • Safety level: up to PL E (ISO 13849), up to SIL 3 (IEC 61508)
  • IP65/67 protection rating

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock
Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7146-6FF00-0AB0
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Input current at signal 1 -
- Milliampere
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Time delay at signal exchange -
0.8 Millisecond
Degree of protection (IP) -
IP65/IP67
Number of interfaces PROFINET -
1
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level e
STATFLAG -
B
Type of digital output -
Other
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Degree of protection (IP rating) -
IP65/IP67
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Depth -
49 Millimetre
Digital inputs configurable -
Digital outputs configurable -
Front built-in possible -
Height -
175 Millimetre
Number of digital inputs -
8
Number of digital outputs -
3
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
2 Ampere
Permitted voltage at input -
-30 Volt
Permitted voltage at output -
0 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
System accessory -
Time delay at signal change -
0.8 Millisecond
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
60 Millimetre

Availability In Stock

£813.00
