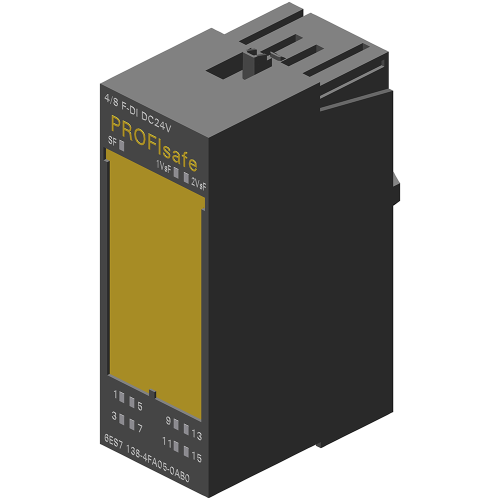

6ES71384FA050AB0

ET200S 4 / 8 F digital inputs failsafe, 24V

Manufacturer's No: 6ES7138-4FA05-0AB0     Manufacturer: Siemens
ET200S 4 / 8 F digital inputs failsafe, 24V

View 3D

Availability Back Order

POA
  • Digital inputs: 4/8 Failsafe
  • Voltage: 24V DC
  • Module width: 30mm
  • Safety levels: PL E (ISO 13849), SIL3 (IEC 61508)
  • Compatible with PROFINET configuration using IM 151-3 HF

Accessories



Product

Manufacturer Material ID -
6ES7138-4FA05-0AB0
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Output current -
- Ampere
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
Time delay at signal exchange -
0.3 Millisecond
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level e
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Digital inputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
81 Millimetre
Input current at signal 1 -
3.7 Milliampere
Number of digital inputs -
8
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-30 Volt
Rail mounting possible -
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
System accessory -
Time delay at signal change -
0.3 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
30 Millimetre

Availability Back Order

POA
