6AV66470AK113AX0

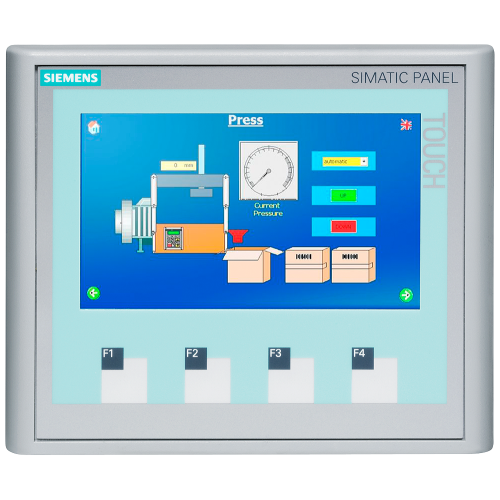

KTP400 Basic PN - 4.3" Colour Touch + 4 keys

Manufacturer's No: 6AV6647-0AK11-3AX0     Manufacturer: Siemens
KTP400 Basic PN - 4.3" Colour Touch + 4 keys

View 3D

Availability Back Order

POA
  • Product: KTP400 Basic PN
  • Display: 4.3" Colour Touch
  • Input: 4 keys
  • Status: Cancelled since 22/02/22
  • Successor: 6AV6647-0AK11-3AX1
  • Type: Sparepart product
  • For assistance, contact local Siemens office

Accessories



Product

Manufacturer Material ID -
6AV6647-0AK11-3AX0
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
33 Millimetre
Operation temperature -
0 Degrees celsius
Number of interfaces PROFINET -
1
Degree of protection (IP), front side -
IP65
Height of the front -
116 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
256
Number of function buttons, programmable -
4
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
480
Number of pixels, vertical -
272
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
33 Millimetre
Screen diagonal -
4.3 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Type of display -
TFT
Useful project memory/user memory -
1000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
140 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
