6AV66470AE113AX0

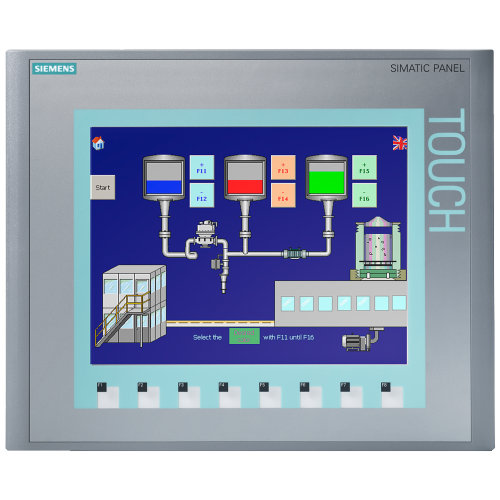

KTP1000 Basic Colour DP - 10.4" Colour Touch + 8 keys

Manufacturer's No: 6AV6647-0AE11-3AX0     Manufacturer: Siemens
KTP1000 Basic Colour DP - 10.4" Colour Touch + 8 keys

View 3D

Availability Back Order

POA
  • Model: KTP1000 Basic Colour DP
  • Display: 10.4" TFT display with 256 colors
  • Operation: Key/touch operation with 8 keys
  • Interface: MPI/PROFIBUS DP interface
  • Compatibility: Configurable with WinCC flexible 2008 SP2 Compact, WinCC Basic V11, STEP 7 Basic V11
  • Includes open-source software provided on CD

Accessories



Product

Manufacturer Material ID -
6AV6647-0AE11-3AX0
Net Weight -
3.08kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC

General data

Degree of protection (NEMA), front side -
UN
Operation temperature -
0 Degrees celsius
Degree of protection (IP), front side -
IP65
Number of buttons with LED -
0
Number of colours of the display -
256
Number of function buttons, programmable -
8
Number of grey-scales/blue-scales of display -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
640
Number of pixels, vertical -
480
Number of system buttons -
0
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
60 Millimetre
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Touch technology -
Resistive touch
Type of display -
TFT
Useful project memory/user memory -
2000 kiloByte (1000 Byte)
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

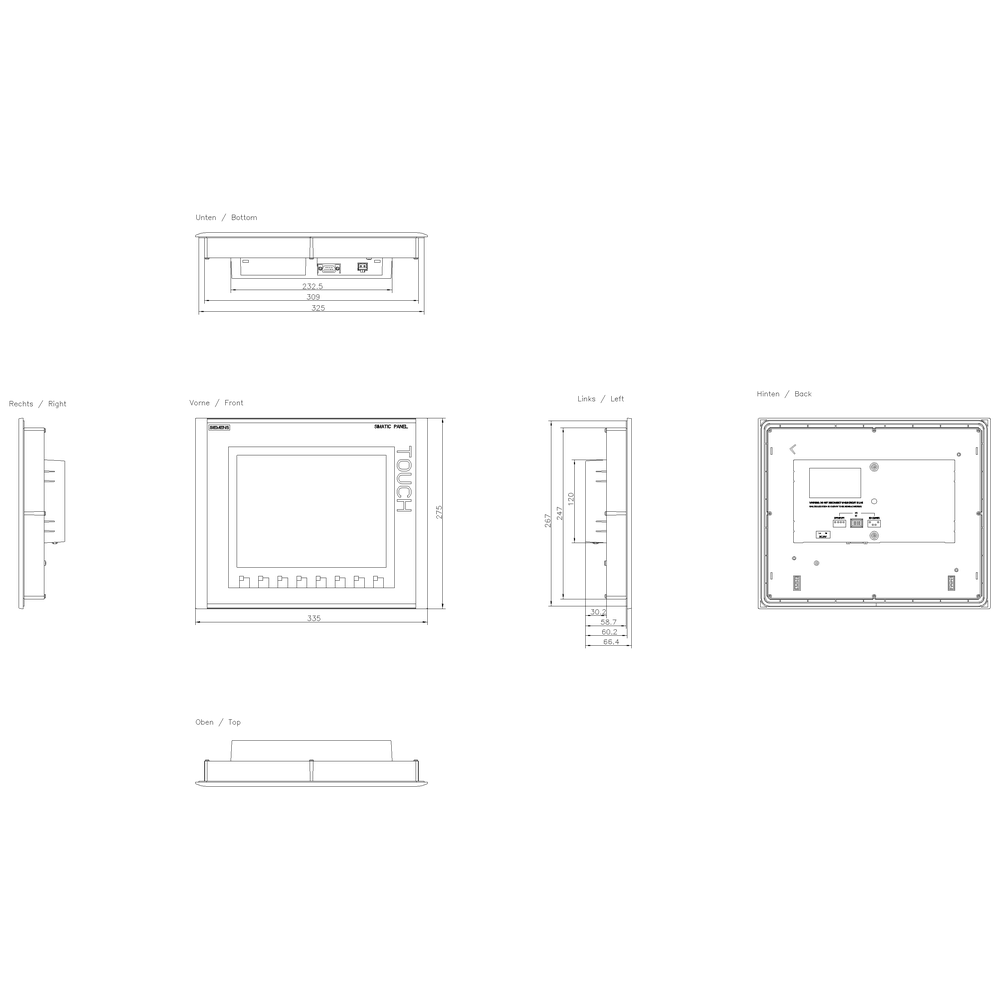

Mechanical data

Built-in depth -
60 Millimetre
Height of the front -
275 Millimetre
Screen diagonal -
10.4 inch
Width of the front -
335 Millimetre

Interfaces

Number of interfaces PROFINET -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0

Ambient conditions

Operating temperature -
0 Degrees celsius
