6AV66470AD113AX0

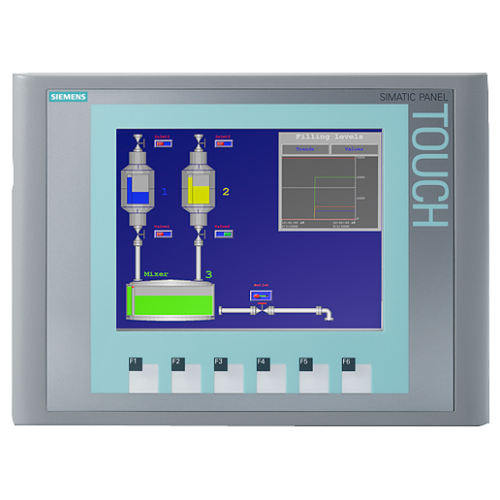

KTP600 Basic PN - 5.7" Colour Touch + 6 keys

Manufacturer's No: 6AV6647-0AD11-3AX0     Manufacturer: Siemens
KTP600 Basic PN - 5.7" Colour Touch + 6 keys

View 3D

Availability Back Order

POA

This product has been superseded by

6AV66470AD113AX1

Please check compatibility before purchasing.

  • KTP600 Basic PN
  • 5.7" Color Touch Display
  • 6 keys
  • Product cancelled since: 22/02/22
  • Successor available: 6AV6647-0AD11-3AX1
  • Sparepart product
  • Contact local Siemens office for assistance

Accessories



Product

Manufacturer Material ID -
6AV6647-0AD11-3AX0
Net Weight -
1.36kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
44 Millimetre
Operation temperature -
0 Degrees celsius
Number of interfaces PROFINET -
1
Degree of protection (IP), front side -
IP65
Height of the front -
158 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
256
Number of function buttons, programmable -
6
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
320
Number of pixels, vertical -
240
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
44 Millimetre
Screen diagonal -
5.7 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Type of display -
TFT
Useful project memory/user memory -
1000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
214 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV66470AD113AX1

Please check compatibility before purchasing.
