6AG11556AU012CN0

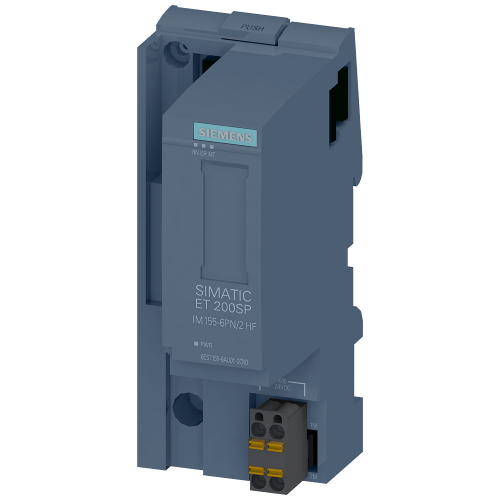

SIPLUS ET 200SP IM 155-6 PN/2 HF with server module With server module

Manufacturer's No: 6AG1155-6AU01-2CN0     Manufacturer: Siemens
SIPLUS ET 200SP IM 155-6 PN/2 HF with server module With server module

View 3D

Availability Back Order

£643.00
  • SIPLUS ET 200SP IM155-6PN HF based on 6ES7155-6AU01-0CN0
  • Conformal coating for harsh environments (-40°C to +60°C)
  • 2-port interface module with 1 slot for BusAdapter
  • Supports up to 64 I/O modules and 16 ET 200AL modules
  • S2 redundancy and multi hot swap capability
  • 0.25 ms response time in isochronous mode
  • Optional PN strain relief
  • Includes server module (6AG1193-6PA00-7AA0)

Selectable mandatory product

Product video
Product video


Product

Manufacturer Material ID -
6AG1155-6AU01-2CN0
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
32151701

Technical Specification

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
74 Millimetre
Height -
117 Millimetre
Rail mounting possible -
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Voltage type of supply voltage -
DC
Width -
50 Millimetre
With potential separation -

Availability Back Order

£643.00
